DIODESDatasheet (PDF)

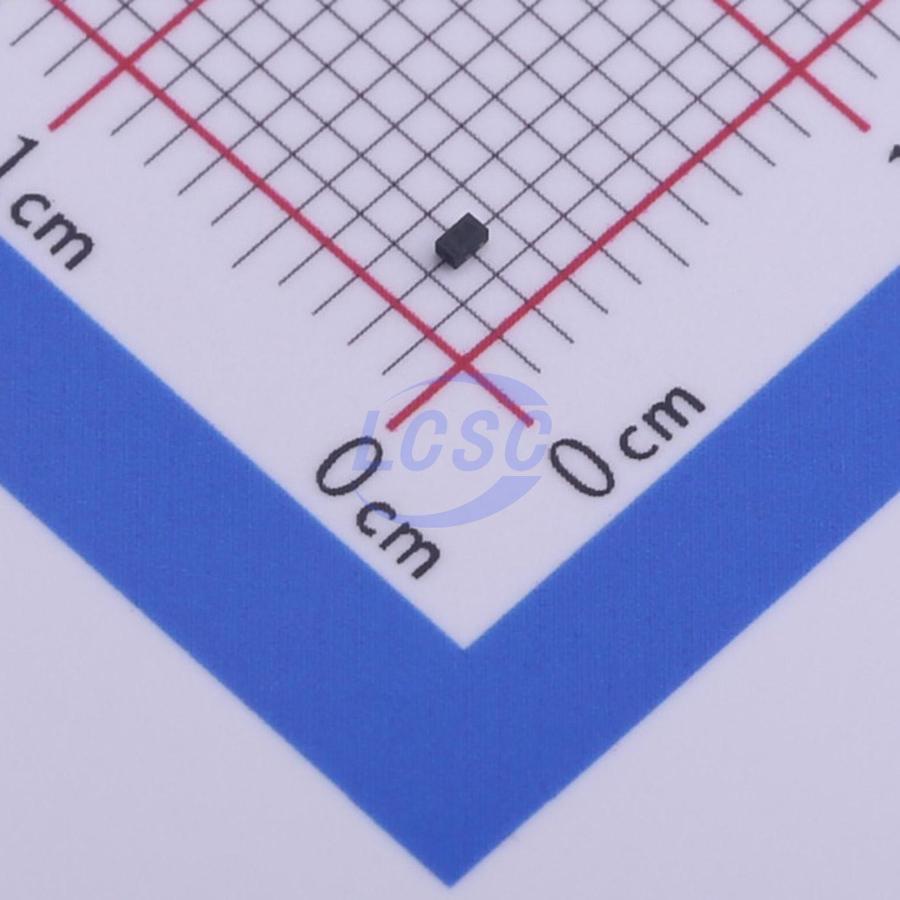

SBR0240LP-7
1 Independent 40V 490mV@200mA 250mA DFN-2(0.6x1) Single Diodes RoHS
DFN-2(0.6x1)ROHS3 CompliantActive
Voltage: 40V Current: 250mA
- Manufacturer
- DIODES
- Manufacturer part #
- SBR0240LP-7
- Store part #
- C460742
- Package / case
- DFN-2(0.6x1)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
145 in stock
#C460742
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.31 | ₹171.55 |
| 50+ | ₹27.48 | ₹1,374.00 |
| 150+ | ₹24.55 | ₹3,682.50 |
| 500+ | ₹20.90 | ₹10,450.00 |
| 3,000+ | ₹19.28 | ₹57,840.00 |
| 6,000+ | ₹18.30 | ₹1,09,800.00 |
5 × ₹34.31
₹171.55
excl. GST
₹202.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SBR0240LP-7
₹171.55 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 490mV@200mA
- Reverse Leakage Current (Ir)
- 600nA@40V
- Non-Repetitive Peak Forward Surge Current
- 5A
- Current - Rectified
- 250mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
Key features
- Ultra-low forward voltage drop
- Excellent reverse avalanche capability
- Patented Super Barrier Rectifier technology (SBR)
- Soft, fast switching capability
- Operating junction temperature up to +150°C
- Fully lead-free and fully RoHS compliant
- Halogen and antimony free, "Green" device
- Device meets JEDEC high reliability standards (as referenced in AEC-Q)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBR02U100LP-7#C445503DIODES · DFN-2(0.6x1) | DIODES | DFN-2(0.6x1) | On request | ₹71.93 · 0 in stock | View |
| SBR02U100LPQ-7#C6215186DIODES · X1-DFN1006-2 | DIODES | X1-DFN1006-2 | On request | ₹44.76 · 0 in stock | View | |
 | PMEG6010CEGW-QJ#C7508914Nexperia · DFN1006D-2 | Nexperia | DFN1006D-2 | On request | ₹23.75 · 0 in stock | View |
