DIODESDatasheet (PDF)

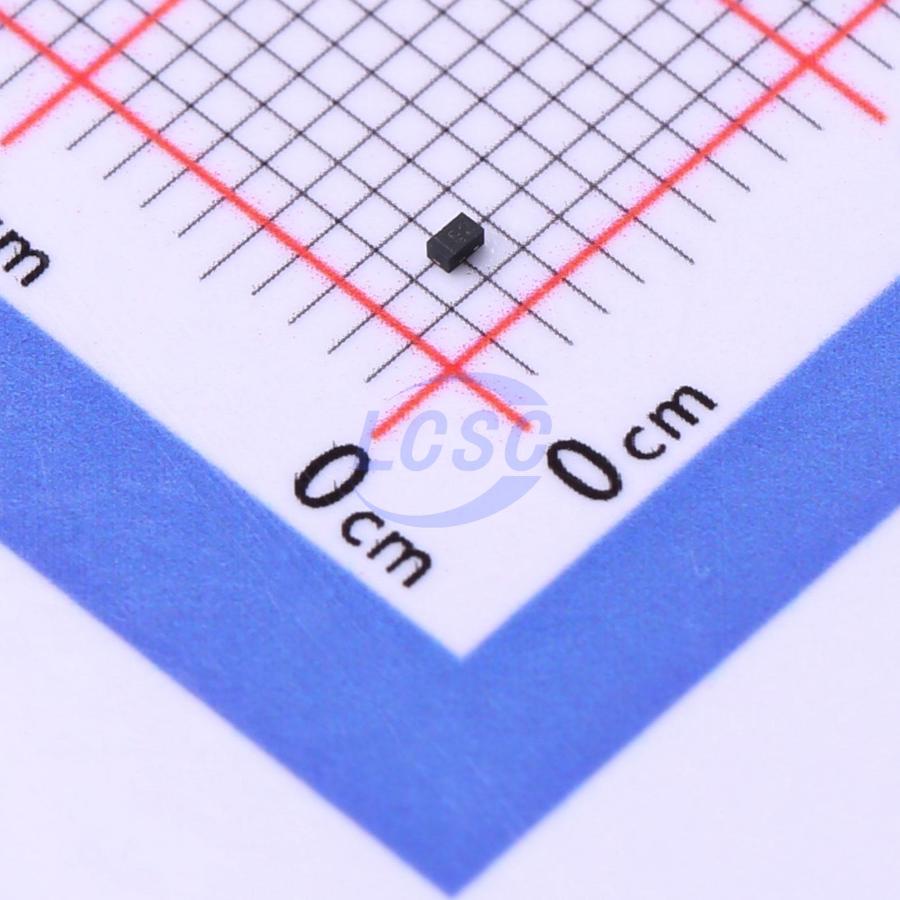

SBR05U20LP-7
1 Independent 20V 500mV@0.5A 500mA X1-DFN1006-2 Single Diodes RoHS
X1-DFN1006-2ROHS CompliantDiscontinued
0.5A SBR Surface Mount Super Barrier Rectifier
- Manufacturer
- DIODES
- Manufacturer part #
- SBR05U20LP-7
- Store part #
- C177063
- Package / case
- X1-DFN1006-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C177063
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.48 | ₹127.40 |
| 50+ | ₹20.23 | ₹1,011.50 |
| 150+ | ₹17.98 | ₹2,697.00 |
| 500+ | ₹15.17 | ₹7,585.00 |
| 3,000+ | ₹13.93 | ₹41,790.00 |
| 6,000+ | ₹13.18 | ₹79,080.00 |
5 × ₹25.48
₹127.40
excl. GST
₹150.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SBR05U20LP-7
₹127.40 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 500mV@0.5A
- Reverse Leakage Current (Ir)
- 50uA
- Current - Rectified
- 500mA
- Non-Repetitive Peak Forward Surge Current
- 5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Key features
- Ultra Low Forward Voltage Drop
- Superior Reverse Avalanche Capability
- Patented Super Barrier Rectifier Technology
- Soft, Fast Switching Capability
- +150 ℃ Operating Junction Temperature
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
- Moisture Sensitivity: Level 1 per J-STD-020
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBRT05U20LPS-7B#C444975DIODES · X2-DFN1006-2 | DIODES | X2-DFN1006-2 | On request | ₹9.78 · 0 in stock | View |
 | SBRT05U20LPSQ-7B#C5249210DIODES · X2-DFN1006-2 | DIODES | X2-DFN1006-2 | On request | ₹15.40 · 0 in stock | View |
 | PMEG6010CEGW-QJ#C7508914Nexperia · DFN1006D-2 | Nexperia | DFN1006D-2 | On request | ₹23.75 · 0 in stock | View |
