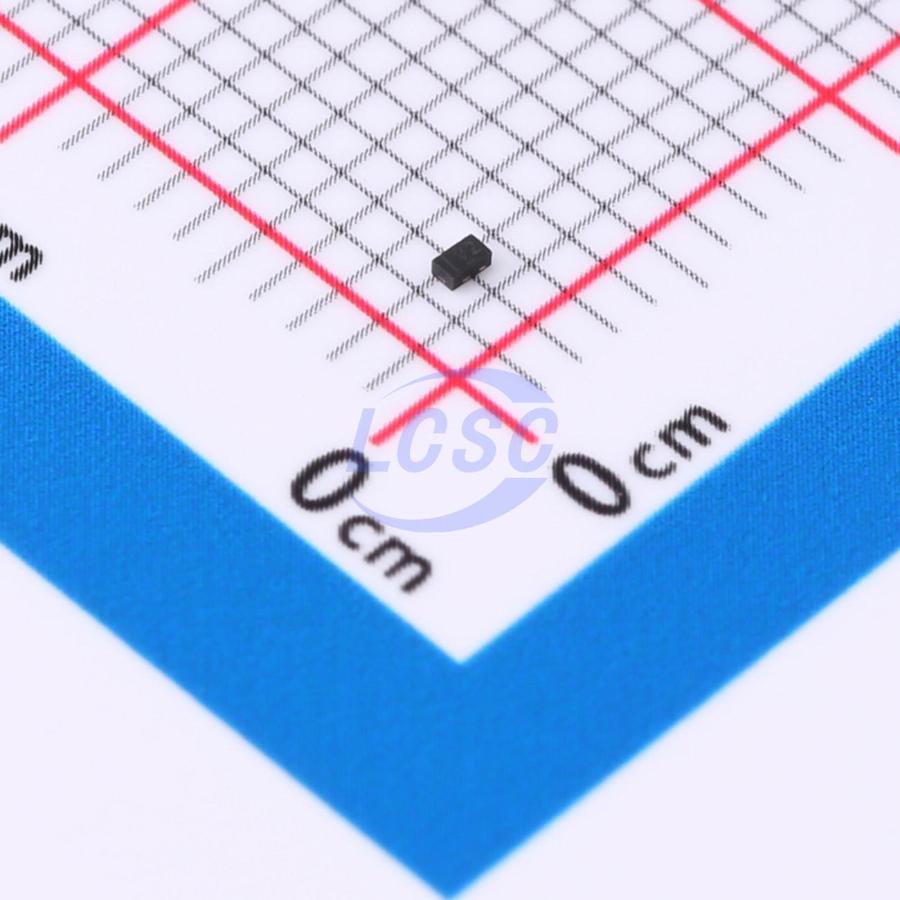

SBRT05U20LPSQ-7B
1 Independent 20V 390mV@0.5A 500mA X2-DFN1006-2 Single Diodes RoHS
X2-DFN1006-2ROHS3 CompliantActive
Trench Super Barrier Rectifier
- Manufacturer
- DIODES
- Manufacturer part #
- SBRT05U20LPSQ-7B
- Store part #
- C5249210
- Package / case
- X2-DFN1006-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C5249210
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.40 | ₹77.00 |
| 50+ | ₹12.13 | ₹606.50 |
| 150+ | ₹10.49 | ₹1,573.50 |
| 500+ | ₹9.27 | ₹4,635.00 |
| 2,500+ | ₹8.30 | ₹20,750.00 |
| 5,000+ | ₹7.81 | ₹39,050.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
Specifications
- Reverse Recovery Time (trr)
- 15ns;6ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - Forward(Vf@If)
- 390mV@0.5A
- Reverse Leakage Current (Ir)
- 50uA
- Non-Repetitive Peak Forward Surge Current
- 10A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.007 g
Overview
Packaged in the compact X2-DFN1006-2, the Trench SBR, the SBRT05U20LPSQ provides ultra-low forward voltage drop (VF) and excellent low reverse leakage stability at high temperatures. It is ideal for use in rectification, freewheeling or polarity protection for applications such as: SMPS General Switching Applications, Reverse Polarity Protection, DC-DC Converters
