DIODESDatasheet (PDF)

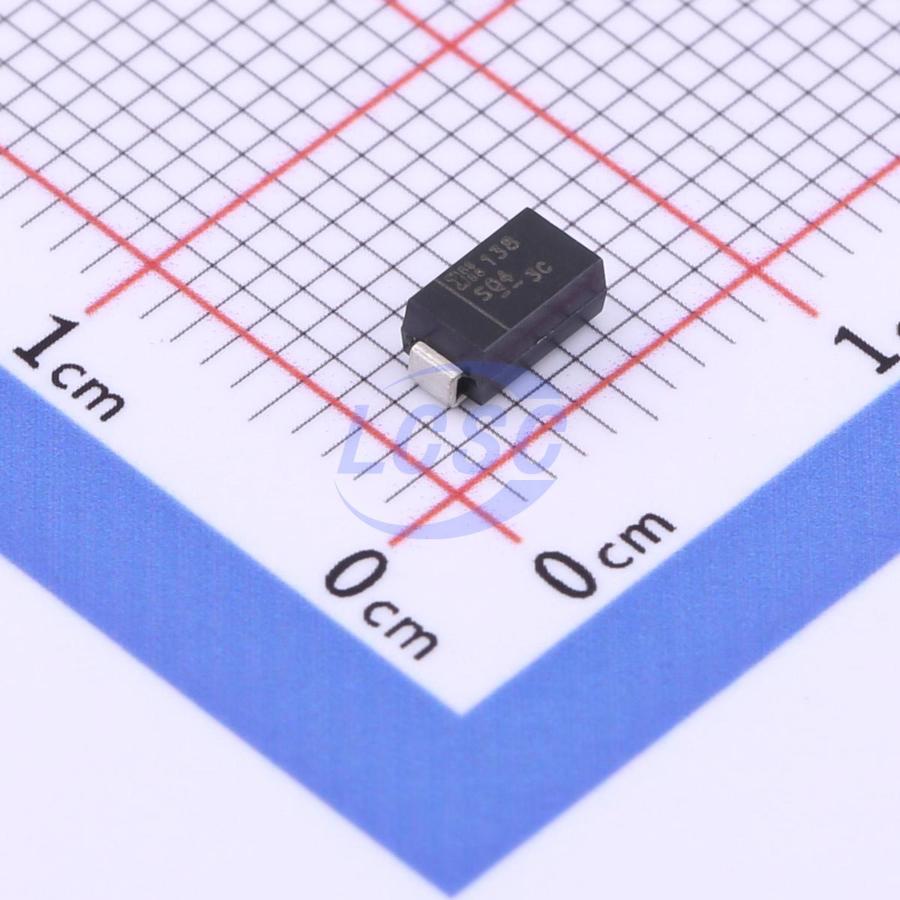

SBR2A40SA-13
1 Independent 40V 550mV@2A 2A SMA Single Diodes RoHS
SMAROHS3 CompliantActive
Voltage： 40V Current： 2A
- Manufacturer
- DIODES
- Manufacturer part #
- SBR2A40SA-13
- Store part #
- C177084
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
165 in stock
#C177084
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.03 | ₹131.03 |
| 10+ | ₹104.31 | ₹1,043.10 |
| 30+ | ₹91.05 | ₹2,731.50 |
| 100+ | ₹77.79 | ₹7,779.00 |
| 500+ | ₹69.76 | ₹34,880.00 |
| 1,000+ | ₹65.63 | ₹65,630.00 |
1 × ₹131.03
₹131.03
excl. GST
₹154.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SBR2A40SA-13
₹131.03 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 550mV@2A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 15A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Applications
- SMPS
- DC-DC Converter Freewheeling Diodes
Key features
- Low Leakage Current
- Patented Super Barrier Rectifier Technology
- Soft, Fast Switching Capability
- +150℃ Operating Junction Temperature
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS24X#C5307975JingYang · SMA | JingYang | SMA | 13,590 | ₹6.05 · 13,590 in stock | View |
 | SBR3A40SA-13#C110516DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 9,900 | ₹27.70 · 9,900 in stock | View |
 | SBR3A40SAQ-13#C780900DIODES · SMA | DIODES | SMA | 4,555 | ₹24.13 · 4,555 in stock | View |
 | SBRT3U45SA-13#C3025203DIODES · SMA | DIODES | SMA | 220 | ₹28.76 · 220 in stock | View |
 | SBR2U150SA-13#C151831DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 5,000 | ₹37.08 · 5,000 in stock | View |
