DIODESDatasheet (PDF)

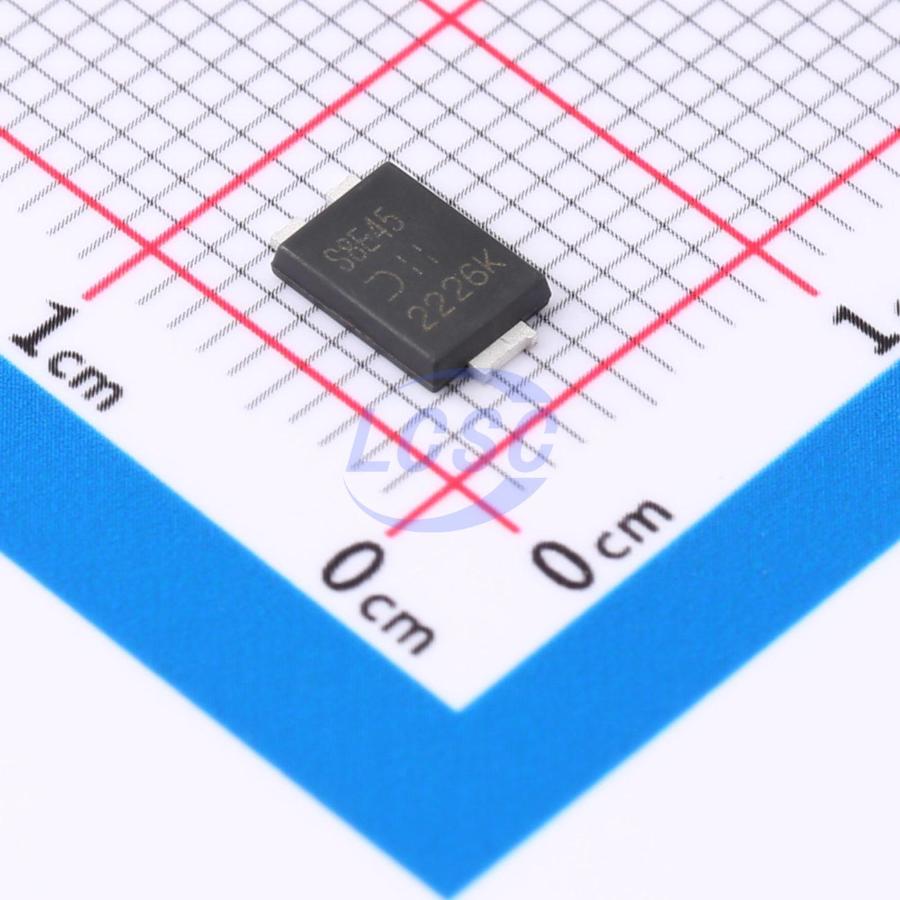

SBR8E45P5-7
1 Independent 45V 510mV@8A 8A PowerDI-5 Single Diodes RoHS
PowerDI-5ROHS CompliantSold out at source
Voltage: 45V Current: 8A
- Manufacturer
- DIODES
- Manufacturer part #
- SBR8E45P5-7
- Store part #
- C4355628
- Package / case
- PowerDI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C4355628
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹33.31 | ₹33.31 |
| 10+ | ₹32.66 | ₹326.60 |
| 30+ | ₹32.23 | ₹966.90 |
| 100+ | ₹31.79 | ₹3,179.00 |
1 × ₹33.31
₹33.31
excl. GST
₹39.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
SBR8E45P5-7
₹33.31 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 510mV@8A
- Reverse Leakage Current (Ir)
- 350uA@45V
- Non-Repetitive Peak Forward Surge Current
- 120A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
Packaged in the compact thermally efficient POWERDI5 package, the SBR5E45P5 provides ultra-low forward-voltage drop (VF) and excellent low reverse leakage stability at high temperatures. It is ideal for use as a rectification, freewheeling or polarity protection diode.
Applications
- 10W AC-DC Adaptors/Chargers
- DC-DC Converters
Key features
- Ultra Low Forward Voltage Drop (VF) Helps Minimize Power Losses
- Excellent Reverse Leakage (IR) Stability at Higher Temperatures
- Thermally Efficient Package for Cooler Running Applications
- Less Than 1.1mm Package Profile Ideal for Thin Applications
- Lead-Free Finish; RoHS Compliant, Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBR8E45P5-7#C5245147DIODES · PowerDI-5 | DIODES | PowerDI-5 | 5 | ₹47.93 · 5 in stock | View |
 | SBR8U60P5Q-13#C5249209DIODES · PowerDI-5 | DIODES | PowerDI-5 | 9,724 | ₹274.97 · 9,724 in stock | View |
| SBRT20U60SP5-13#C4355625DIODES · PowerDI-5 | DIODES | PowerDI-5 | 3 | ₹322.63 · 3 in stock | View | |
 | SBRT20U60SP5-7#C156299DIODES · PowerDI-5 | DIODES | PowerDI-5 | 1,307 | ₹151.58 · 1,307 in stock | View |
 | SBR10A45SP5-13#C780892DIODES · Power-DI-5 | DIODES | Power-DI-5 | 15 | ₹83.88 · 15 in stock | View |
