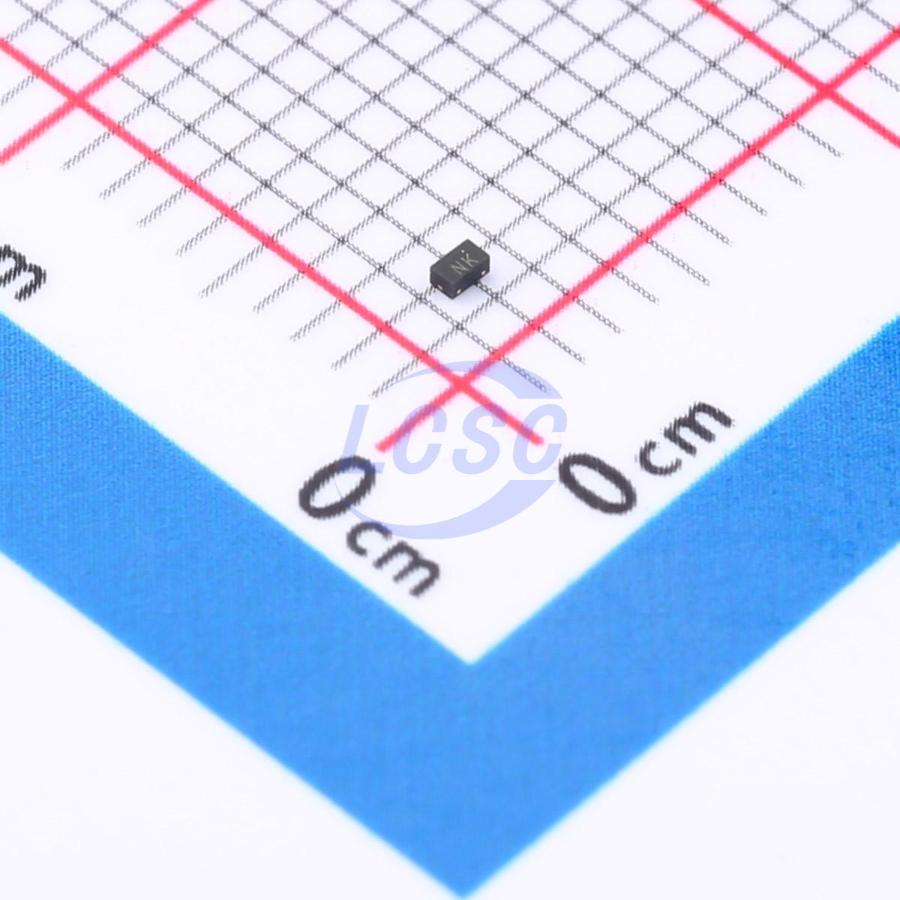

SC1333-01ETG
9VC Clamp 5A@8/20us Ipp TVS DIODE SOD-882
TVS DIODE 3.3VWM 9VC SOD-882
- Manufacturer
- Littelfuse
- Manufacturer part #
- SC1333-01ETG
- Store part #
- C3709801
- Package / case
- SOD-882
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
715 in stock
#C3709801
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.27 | ₹66.35 |
| 50+ | ₹10.56 | ₹528.00 |
| 150+ | ₹9.19 | ₹1,378.50 |
| 500+ | ₹8.18 | ₹4,090.00 |
| 2,500+ | ₹7.37 | ₹18,425.00 |
| 5,000+ | ₹6.96 | ₹34,800.00 |
5 × ₹13.27
₹66.35
excl. GST
₹78.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SC1333-01ETG
₹66.35 for 5 + GST
Specifications
- Clamping Voltage
- 9V
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Voltage - Breakdown
- 3.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The SC1333-01ETG back-to-back diodes are fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SC1333-01ETG TVS can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation. The back-to-back configuration provides symmetrical ESD protection for data lines. Additionally, the SC1333-01ETG offers up to 5A 8/20μs surge rating with low clamping voltages.
Applications
- Mobile Phones
- Smart Phones
- Portable Medical
- MP3/PMP
- Portable Navigation Components
- Tablets
- Small Size Panel Point of Sale Terminals
Key features
- ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
- EFT, IEC 61000-4-4, 40A (5/50ns)
- Lightning, IEC 61000-4-5, 2nd Edition, 5A (8/20μs)
- Low capacitance of 8pF (TYP @ VR = 0V)
- Low leakage current of 1nA (TYP) at 3.3V
- Space Effcient 0402
- Halogen free, Lead free and RoHS compliant
- Moisture Sensitivity Level (MSL -1)
