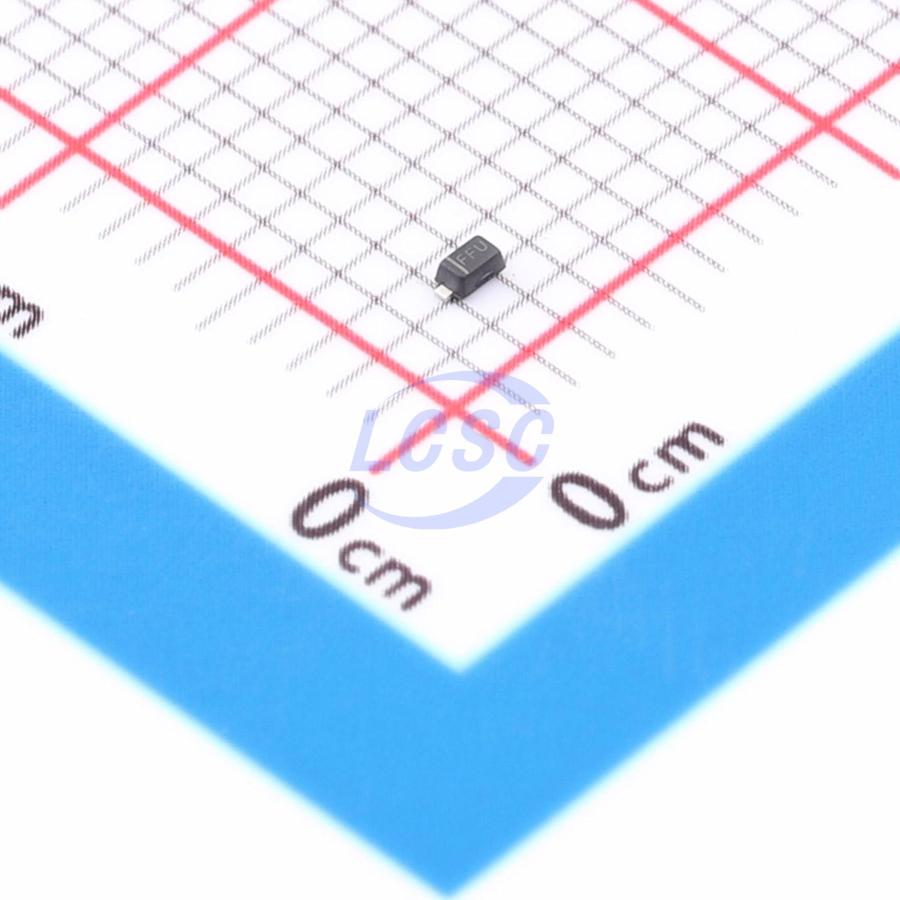

SC3530-01LTG
12.8V 2.5A@8/20us 8.2V Unidirectional 7V SOD-523 TVS Diodes RoHS
- Manufacturer
- Littelfuse
- Manufacturer part #
- SC3530-01LTG
- Store part #
- C20349869
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C20349869
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.98 | ₹125.98 |
| 10+ | ₹108.63 | ₹1,086.30 |
| 30+ | ₹99.95 | ₹2,998.50 |
| 100+ | ₹91.50 | ₹9,150.00 |
| 500+ | ₹86.30 | ₹43,150.00 |
| 1,000+ | ₹83.69 | ₹83,690.00 |
1 × ₹125.98
₹125.98
excl. GST
₹148.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SC3530-01LTG
₹125.98 for 1 + GST
Specifications
- Clamping Voltage
- 12.8V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Voltage - Breakdown
- 8.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
The SC3530-01LTG provides ultra-low capacitance, unidirectional and a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). The typical capacitance of 0.3pF@36Hz helps ensure excellent signal integrity on the most challenging consumer electronics interfaces, such as V-By-One, HDMI, USB3.0, USB2.0, and IEEE1394. It can safely absorb repetitive ESD strikes at ±22kV (contact discharge, IEC 61000-4-2) without performance degradation and safely dissipate 2.5A of 8/20μs surge current (IEC 61000-4-5 2nd edition).
Applications
- DisplayPort
- HDMI 2.0, 1.4a, 1.3
- LVDS interfaces
- Tablet PC and external storage with high speed interfaces
- Ultra-high speed data lines
- USB 3.1, 3.0, 2.0
- V-by-One
Key features
- Low leakage current of 100nA (TYP) at 7.0V
- Halogen-free, lead-free and RoHS compliant
- Moisture Sensitivity Level (MSL-1)
- ESD, IEC 61000-4-2, ±22kV contact/air
- EFT, IEC 61000-4-4, 40A (5/50ns)
- Maximum surge tolerance, IEC 61000-4-5, 2nd Edition, 2.5A (8/20μs)
- Ultra low capacitance of 0.3pF@3GHz (TYP@Vz=OV)
