STDatasheet (PDF)

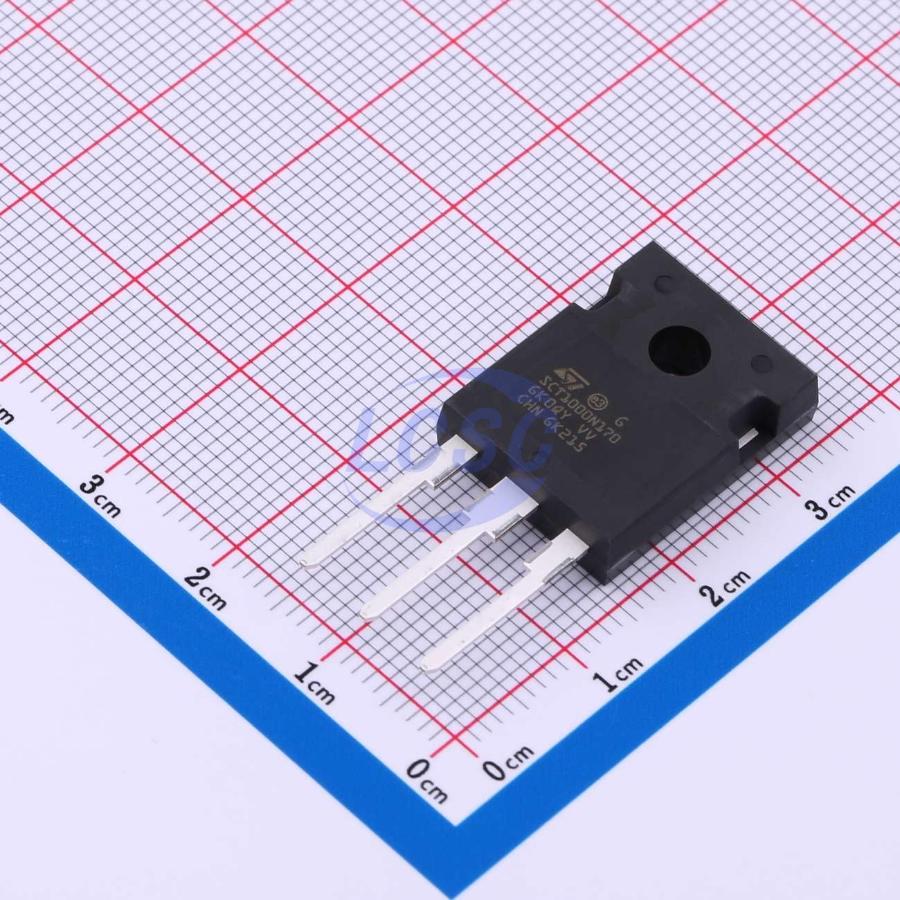

SCT1000N170
1.7kV 7A 96W 1.3Ω 1 N-channel N-Channel TO-247-3 Single FETs, MOSFETs RoHS
TO-247-3ROHS3 CompliantActive
Silicon carbide Power MOSFET 1700 V, 1.0 Ω typ., 7 A in an HiP247 package
- Manufacturer
- ST
- Manufacturer part #
- SCT1000N170
- Store part #
- C2970166
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C2970166
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹794.12 | ₹794.12 |
| 10+ | ₹684.06 | ₹6,840.60 |
| 30+ | ₹616.76 | ₹18,502.80 |
| 90+ | ₹560.53 | ₹50,447.70 |
1 × ₹794.12
₹794.12
excl. GST
₹937.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
SCT1000N170
₹794.12 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+200℃
- Drain to Source Voltage
- 1.7kV
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 133pF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 3.4pF
- RDS(on)
- 1.3Ω
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13.3nC
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.3 g
Overview
This silicon carbide Power MOSFET is produced exploiting the advanced, innovative properties of wide bandgap materials. This results in unsurpassed on-resistance per unit area and very good switching performance almost independent of temperature. The outstanding thermal properties of the SiC material, combined with the device’s housing in the proprietary HiP247 package, allows designers to use an industry standard outline with significantly improved thermal capability. These features render the device perfectly suitable for high-efficiency and high power density applications.
Applications
- Auxiliary power supply for server
- Switch mode power supply
Key features
- High speed switching performance
- Very fast and robust intrinsic body diode
- Low capacitances
- Very high operating junction temperature capability (T_J = 200 ℃)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IXTH1N200P3(TOKMAS)#C48586471Tokmas · TO-247-3 | Tokmas | TO-247-3 | 188 | ₹475.94 · 188 in stock | View |
 | CI7N220SM#C42391832Tokmas · TO-247-3 | Tokmas | TO-247-3 | 203 | ₹392.63 · 203 in stock | View |
| IMWH170R650M1XKSA1#C29064492Infineon · TO-247-3 | Infineon | TO-247-3 | 18 | ₹887.64 · 18 in stock | View | |
 | CI7N170SM#C2842690Tokmas · TO-247-3 | Tokmas | TO-247-3 | 1,102 | ₹536.95 · 1,102 in stock | View |
 | LGE3M650170B#C42372481LGE · TO-247-3 | LGE | TO-247-3 | 30 | ₹685.13 · 30 in stock | View |
