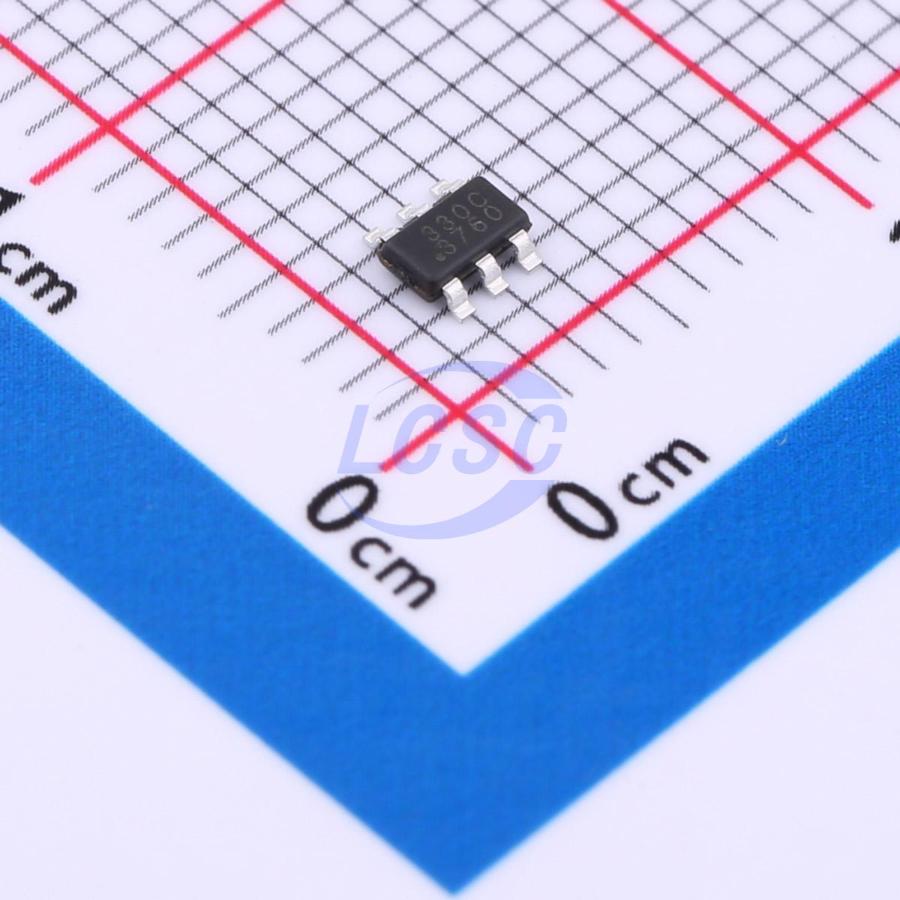

SCT2330CTVBR
Step-down type 360kHz~440kHz Adjustable 3A TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6LROHS CompliantActive
3.8V-28V Wide Input Voltage Range, 3A Synchronous Step-Down DC-DC Converter
- Manufacturer
- SCT
- Manufacturer part #
- SCT2330CTVBR
- Store part #
- C5118053
- Package / case
- TSOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,086 in stock
#C5118053
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.24 | ₹107.24 |
| 10+ | ₹88.32 | ₹883.20 |
| 30+ | ₹78.97 | ₹2,369.10 |
| 100+ | ₹69.39 | ₹6,939.00 |
| 500+ | ₹58.30 | ₹29,150.00 |
| 1,000+ | ₹55.26 | ₹55,260.00 |
1 × ₹107.24
₹107.24
excl. GST
₹126.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SCT2330CTVBR
₹107.24 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 360kHz~440kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;EMI optimization (spread spectrum);Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 3.8V~28V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 25uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The SCT2330C is 3A synchronous buck converters with up to 28V wide input voltage range, which fully integrates an 80mΩ high-side MOSFET and a 42mΩ low-side MOSFET to provide high efficiency step-down DC-DC conversion. The SCT2330C adopts peak current mode control with the integrated compensation network, which makes SCT2330C easily to be used by minimizing the off-chip component count. The SCT2330C supports the Pulse Skipping Modulation (PSM) with typical 25uA Ultra-Low Quiescent. The SCT2330C is an Electromagnetic Interference (EMI) friendly buck converter with implementing optimized design for EMI reduction. The SCT2330C features Frequency Spread Spectrum FSS with ±6% jittering span of the 400kHz switching frequency and modulation rate 1/512 of switching frequency to reduce the conducted EMI. The converter has proprietary designed gate driver scheme to resist switching node ringing without sacrificing MOSFET turn-on and turn-off time, which further erases high frequency radiation EMI noise caused by the MOSFETs hard switching. The SCT2330C offers output over-voltage protection, cycle-by-cycle peak current limit, and thermal shutdown protection. The device is available in a low-profile TSOT23-6L package.
Applications
- White Goods, Home Appliance
- Surveillance
- Audio, WiFi Speaker
- Printer, Charging Station
- DTV, STB, Monitor/LCD Display
Key features
- EMI Reduction with Switching Node Ringing-free
- 400kHz Switching Frequency with ±6% Frequency Spread Spectrum (FSS)
- Pulse Skipping Mode PSM with 25uA Quiescent Current in Light Load Condition
- 3.8V - 28V Wide Input Voltage Range
- Up to 3A Continuous Output Load Current
- 0.8V ±1% Feedback Reference Voltage
- Fully Integrated 80mΩ Rdson High Side MOSFET and 42mΩ Rdson Low Side MOSFET
- 1uA Shut-down Current
- 80ns Minimum On-time
- Precision Enable Threshold for Programmable UVLO Threshold and Hysteresis
- 4ms Built-in Soft Start Time
- Output Over Voltage Protection
- Thermal Shutdown Protection at 160°C
- Available in TSOT23-6L Package
