SCTDatasheet (PDF)

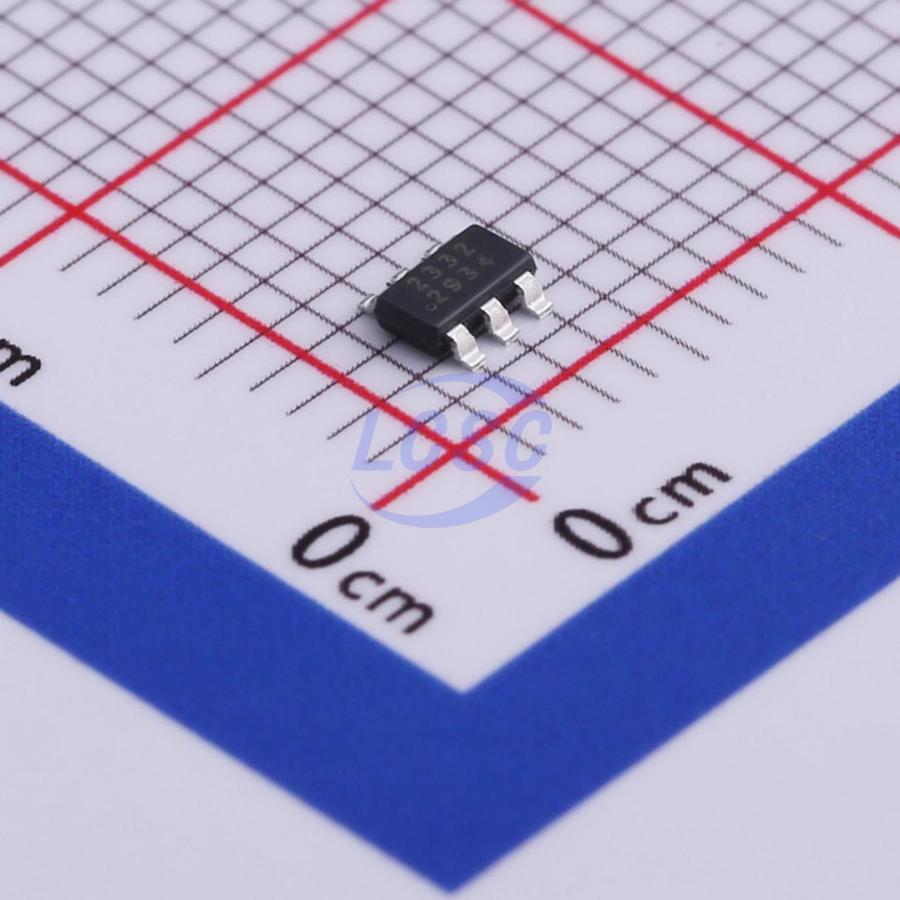

SCT2332TVBR
Step-down type 360kHz~440kHz Adjustable 3A TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6LROHS CompliantActive
3.8V-32V Input, 3A Synchronous Step-down DC-DC Converter
- Manufacturer
- SCT
- Manufacturer part #
- SCT2332TVBR
- Store part #
- C509069
- Package / case
- TSOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,159 in stock
#C509069
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.76 | ₹98.76 |
| 10+ | ₹79.84 | ₹798.40 |
| 30+ | ₹70.49 | ₹2,114.70 |
| 100+ | ₹61.14 | ₹6,114.00 |
| 500+ | ₹53.30 | ₹26,650.00 |
| 1,000+ | ₹50.47 | ₹50,470.00 |
1 × ₹98.76
₹98.76
excl. GST
₹116.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SCT2332TVBR
₹98.76 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 360kHz~440kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.8V~32V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 250uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
3A synchronous buck converters with up to 32V wide input voltage range, which fully integrates an 80mΩ high-side MOSFET and a 42mΩ low-side MOSFET to provide high efficiency step-down DCDC conversion. Adopts peak current mode control with the integrated compensation network, which makes it easily to be used by minimizing the off-chip component count. Supports the Pulse Skipping Modulation (PSM). Offers output over-voltage protection, cycle-by-cycle peak current limit, and thermal shutdown protection. Available in a low-profile TSOT23-6 package.
Applications
- White Goods, Home Appliance
- Surveillance
- Audio, WiFi Speaker
- Printer, Charging Station
- DTV, STB, Monitor/LCD Display
Key features
- Switching Node Ringing-free
- 400kHz Switching Frequency
- Pulse Skipping Mode PSM in Light Load Condition
- 3.8V - 32V Wide Input Voltage Range
- Up to 3A Continuous Output Load Current
- 0.8V ±1% Feedback Reference Voltage
- Fully Integrated 80mΩ Rdson High Side MOSFET and 42mΩ Rdson Low Side MOSFET
- 1uA Shut-down Current
- 80ns Minimum On-time
- Precision Enable Threshold for Programmable UVLO Threshold and Hysteresis
- Low Drop out (LDO) Mode Operation
- 4ms Built-in Soft Start Time
- Output Over Voltage Protection
- Thermal Shutdown Protection at 160°C
- Available in TSOT23-6L Package
