TECH PUBLICDatasheet (PDF)

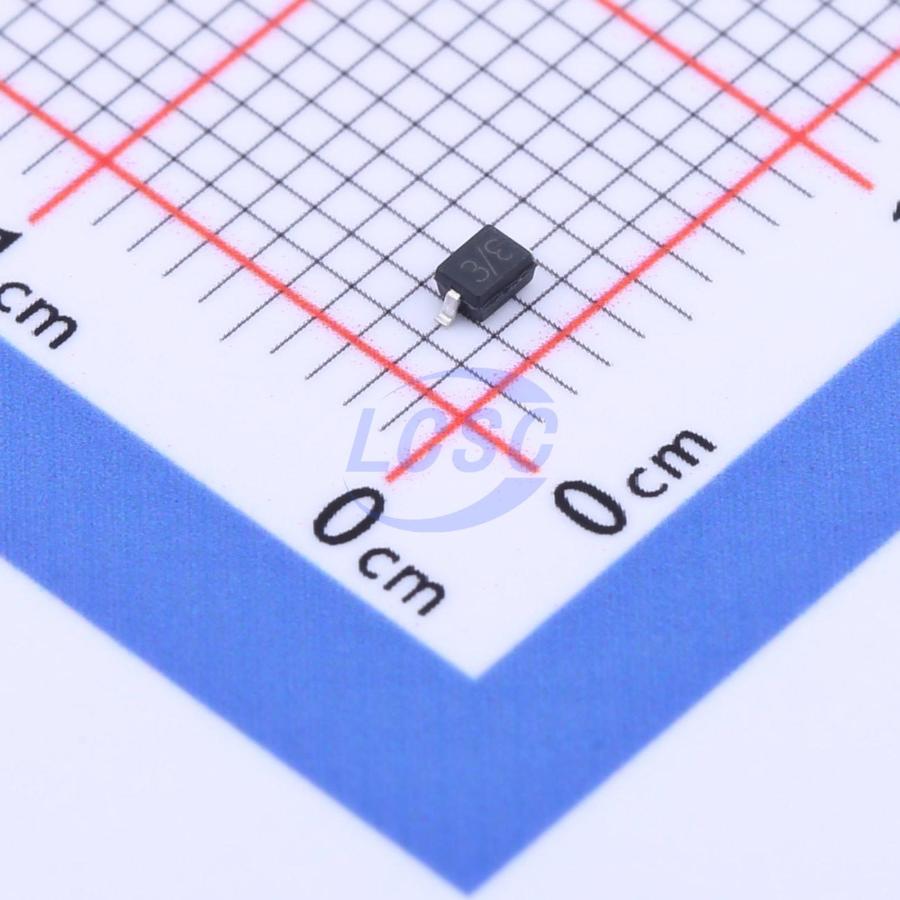

SD03C
10VC Clamp 20A@8/20us Ipp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 3.3VWM 10VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SD03C
- Store part #
- C2937004
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,250 in stock
#C2937004
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.88 | ₹68.80 |
| 100+ | ₹5.62 | ₹562.00 |
| 300+ | ₹4.99 | ₹1,497.00 |
| 3,000+ | ₹3.60 | ₹10,800.00 |
| 6,000+ | ₹3.21 | ₹19,260.00 |
| 9,000+ | ₹3.03 | ₹27,270.00 |
10 × ₹6.88
₹68.80
excl. GST
₹81.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SD03C
₹68.80 for 10 + GST
Specifications
- Clamping Voltage
- 10V
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 4V
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- 200W peak pulse power (8/20us)
- Protects one data or power line
- Operating voltage: 3.3V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 80A (5/50ns)
- IEC61000 - 4 - 5 (SURGE) 20A (8/20us)
- Ultra low leakage: nA level
- Case Material: "Green” Molding Compound
- UL Flammability Classification Rating 94V - 0
- Moisture Sensitivity: Level 3 per J - STD - 020
- Shipping Qty : 3000pcs/7inch Tape & Reel
