TECH PUBLICDatasheet (PDF)

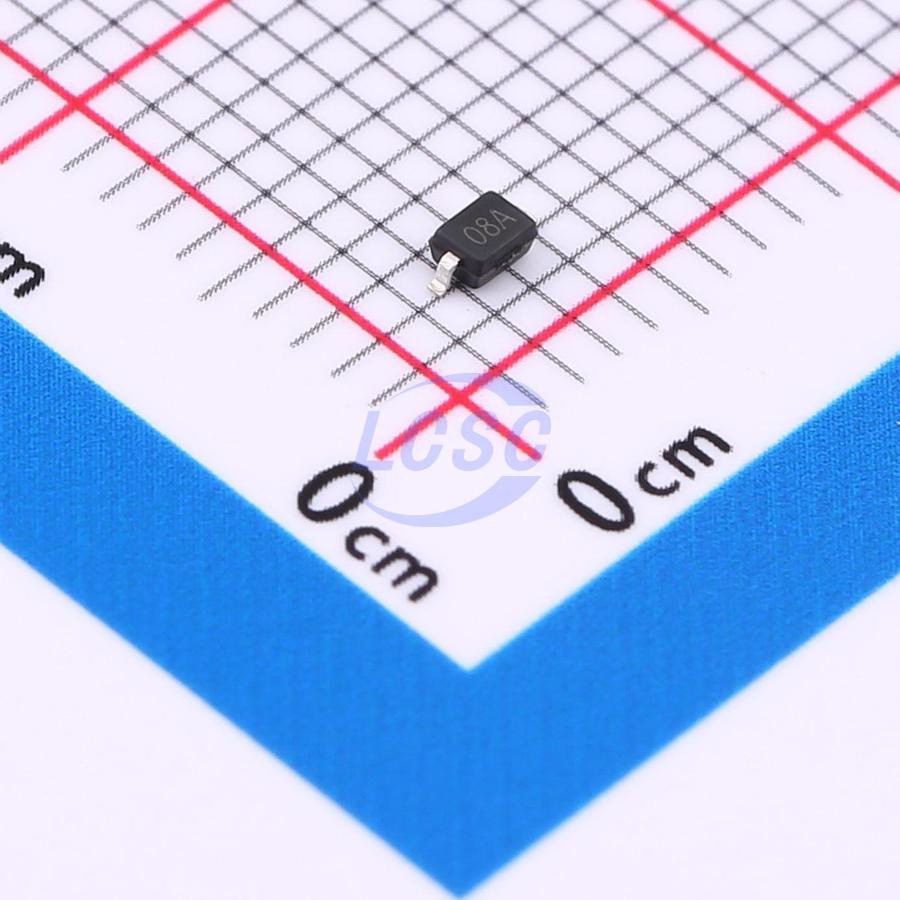

SD08C
18VC Clamp 8A@8/20us Ipp SOD-323
SOD-323RoHSActive
8VWM 18VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SD08C
- Store part #
- C46472769
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,740 in stock
#C46472769
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.62 | ₹92.40 |
| 200+ | ₹3.59 | ₹718.00 |
| 600+ | ₹3.00 | ₹1,800.00 |
| 3,000+ | ₹2.66 | ₹7,980.00 |
| 9,000+ | ₹2.37 | ₹21,330.00 |
| 21,000+ | ₹2.20 | ₹46,200.00 |
20 × ₹4.62
₹92.40
excl. GST
₹109.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SD08C
₹92.40 for 20 + GST
Specifications
- Clamping Voltage
- 18V
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 9.7V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.028 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- Low operating voltage: 8V
- Ultra low capacitance: 12pF
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- 2-pin leadless package
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
