JSMSEMIDatasheet (PDF)

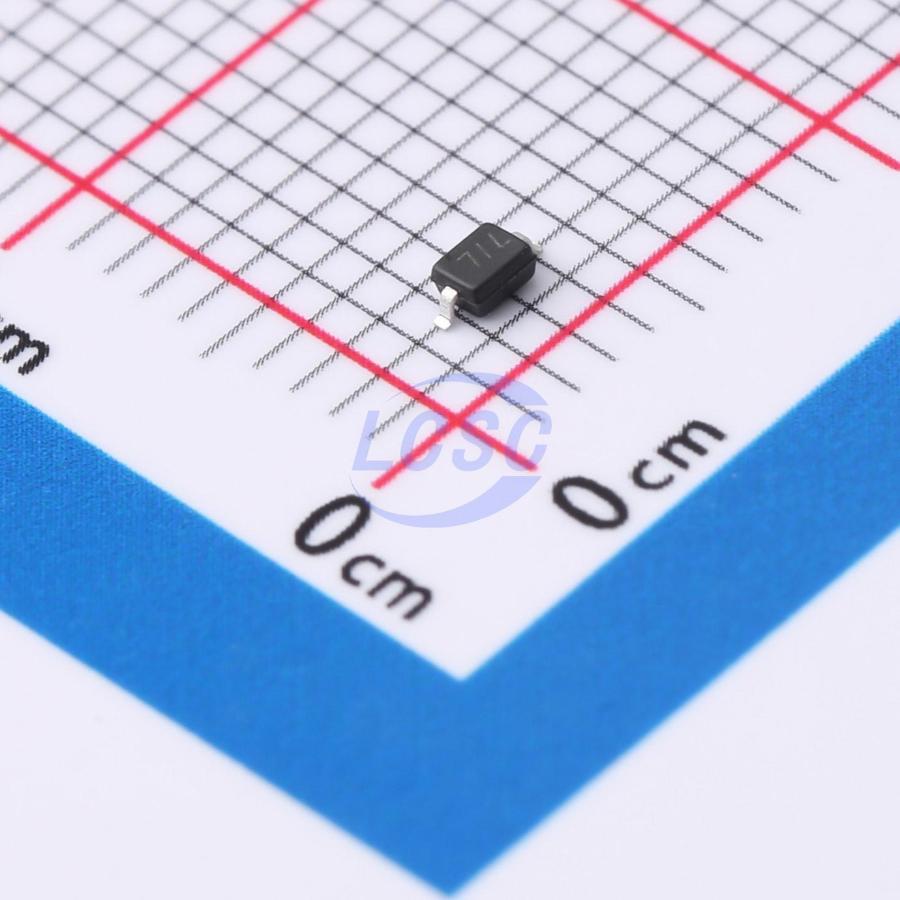

SD15C
35VC Clamp 12A@8/20us Ipp SOD-323
SOD-323ROHS CompliantActive
15VWM 35VC SOD-323
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SD15C
- Store part #
- C5189700
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C5189700
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.82 | ₹58.20 |
| 100+ | ₹4.60 | ₹460.00 |
| 300+ | ₹4.00 | ₹1,200.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.16 | ₹18,960.00 |
| 9,000+ | ₹2.98 | ₹26,820.00 |
10 × ₹5.82
₹58.20
excl. GST
₹68.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SD15C
₹58.20 for 10 + GST
Specifications
- Clamping Voltage
- 35V
- Peak Pulse Current (Ipp)
- 12A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 500W
- Number of Channels
- 1
- Voltage - Breakdown
- 13.3V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- 3000
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- Laptop Computers
- Cellular Phones
- Digital Cameras
- Personal Digital Assistants (PDAs)
Key features
- 500 Watts Peak Pulse Power per Line (tp = 8/20μs)
- Protects one I/O or power line
- Low Clamping Voltage
- Working Voltage: 15 V
- Low Leakage Current
- Response Time is Typically < 1 ns
- IEC 61000 - 4 - 2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 12A (8/20μs)
