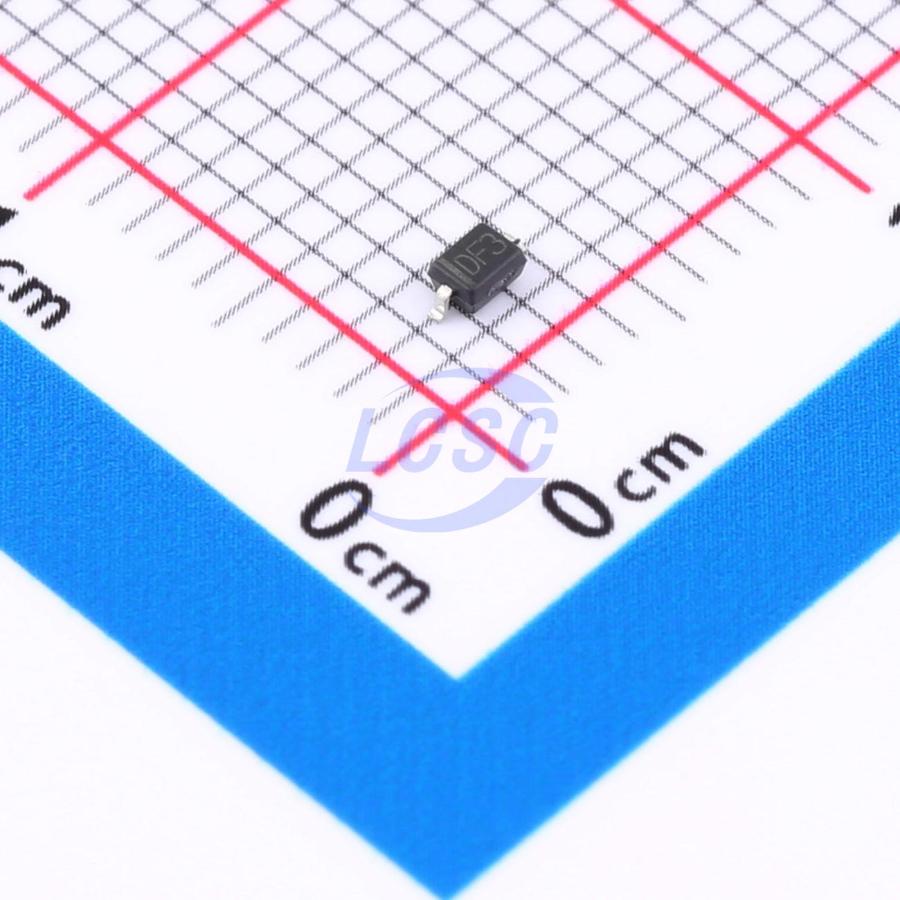

SD22-01FTG
35.5VC Clamp 27A@8/20us Ipp TVS DIODE SOD-323
TVS DIODE 22VWM 35.5VC SOD-323
- Manufacturer
- Littelfuse
- Manufacturer part #
- SD22-01FTG
- Store part #
- C1518218
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C1518218
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.09 | ₹275.45 |
| 50+ | ₹46.49 | ₹2,324.50 |
| 150+ | ₹42.81 | ₹6,421.50 |
| 500+ | ₹38.21 | ₹19,105.00 |
| 3,000+ | ₹36.17 | ₹1,08,510.00 |
| 6,000+ | ₹34.94 | ₹2,09,640.00 |
5 × ₹55.09
₹275.45
excl. GST
₹325.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SD22-01FTG
₹275.45 for 5 + GST
Specifications
- Clamping Voltage
- 35.5V
- Peak Pulse Current (Ipp)
- 27A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 950W
- Number of Channels
- 1
- Voltage - Breakdown
- 23V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 20nA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The Unidirectional SD22 Series is designed for use in electronic equipment for low speed and DC applications. It will protect any sensitive equipment from damage due to electrostatic discharge (ESD) and other transient events. The SD22 series can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC 61000-4-2) without performance degradation and safely dissipate 27A of 8/20μs induced surge current (IEC 61000-4-5 2nd edition) with very low clamping voltages.
Applications
- Switches / Buttons
- Test Equipment / Instrumentation
- Point-of-Sale Terminals
- Medical Equipment
- Notebooks / Desktops / Servers
- Computer Peripherals
- Automotive applications
Key features
- ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
- EFT, IEC 61000-4-4, 40A (5/50ns)
- Lightning, IEC 61000-4.5 2nd edition, 27A (tp=8/20μs)
- Low clamping voltage
- Low leakage current
- Small SOD323 package fits 0805 footprints
- Moisture Sensitivity Level(MSL -1)
- Halogen-free, lead-free and RoHS-compliant
