TECH PUBLIC

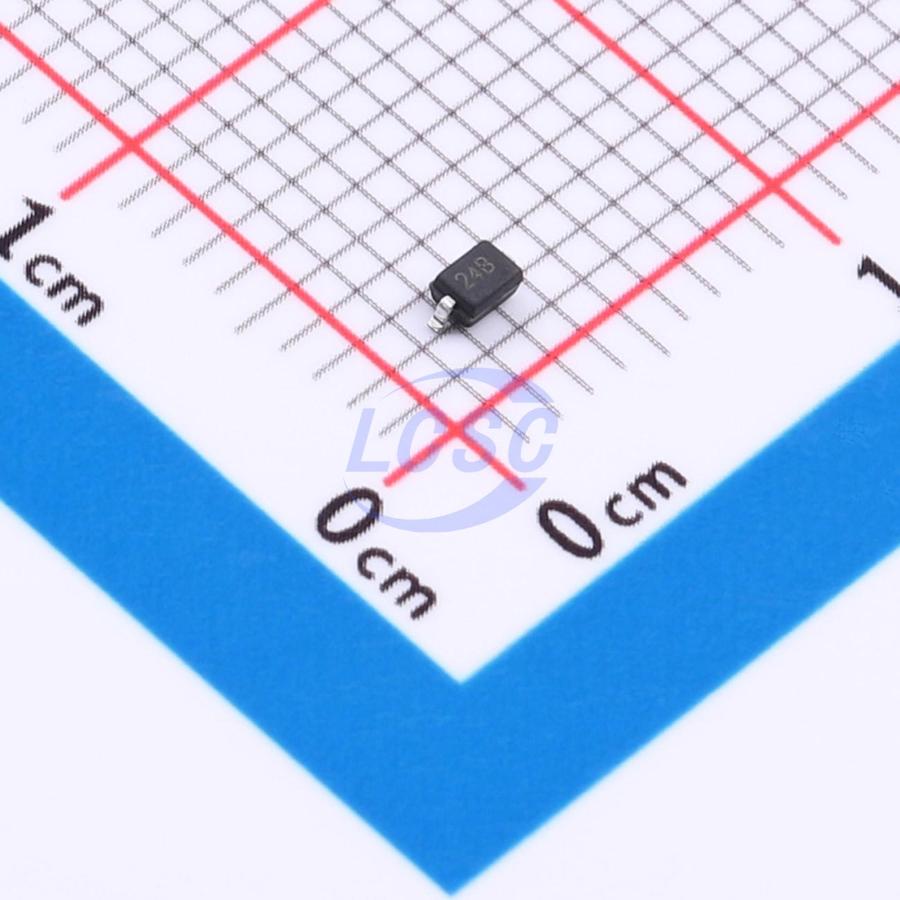

SD24C-TP

45V 8A@8/20us 400W@8/20us 26.7V Bidirectional 24V SOD-323 TVS Diodes

SOD-323RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SD24C-TP
Store part #: C53100389
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,720 in stock

#C53100389

Stock & price checked 16 days ago

Quantity	Unit price	Pack price
20+	₹4.27	₹85.40
200+	₹3.31	₹662.00
600+	₹2.77	₹1,662.00
3,000+	₹2.45	₹7,350.00
9,000+	₹2.17	₹19,530.00
21,000+	₹2.02	₹42,420.00

Quantity (min 20, multiples of 20)

20 × ₹4.27

₹85.40

excl. GST

₹100.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SD24C-TP

₹85.40 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 45V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 8A@8/20us
Peak Pulse Power Dissipation (Ppp): 400W@8/20us
Voltage - Breakdown: 26.7V
Number of Channels: 1
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.026 g

Overview

Applications

Mobile Phones & Accessories
Personal Digital Assistants
Laptops & Handheld Devices
Portable Instruments
Peripheral Devices

Key features

Low operating voltage: 24V
Ultra-low capacitance: 40pF (typical)
Ultra-low leakage current: nA-level
Low clamping voltage
Compliant with IEC 61000-4-2 (ESD) immunity test standard
Air discharge: ±30kV
Contact discharge: ±30kV
Compliant with IEC 61000-4-4 (EFT) standard, 40A (5/50ns)
Compliant with IEC 61000-4-5 (surge) standard, 8A (8/20μs)
2-pin leadless package
Typical response time <1 ns
