DIODESDatasheet (PDF)

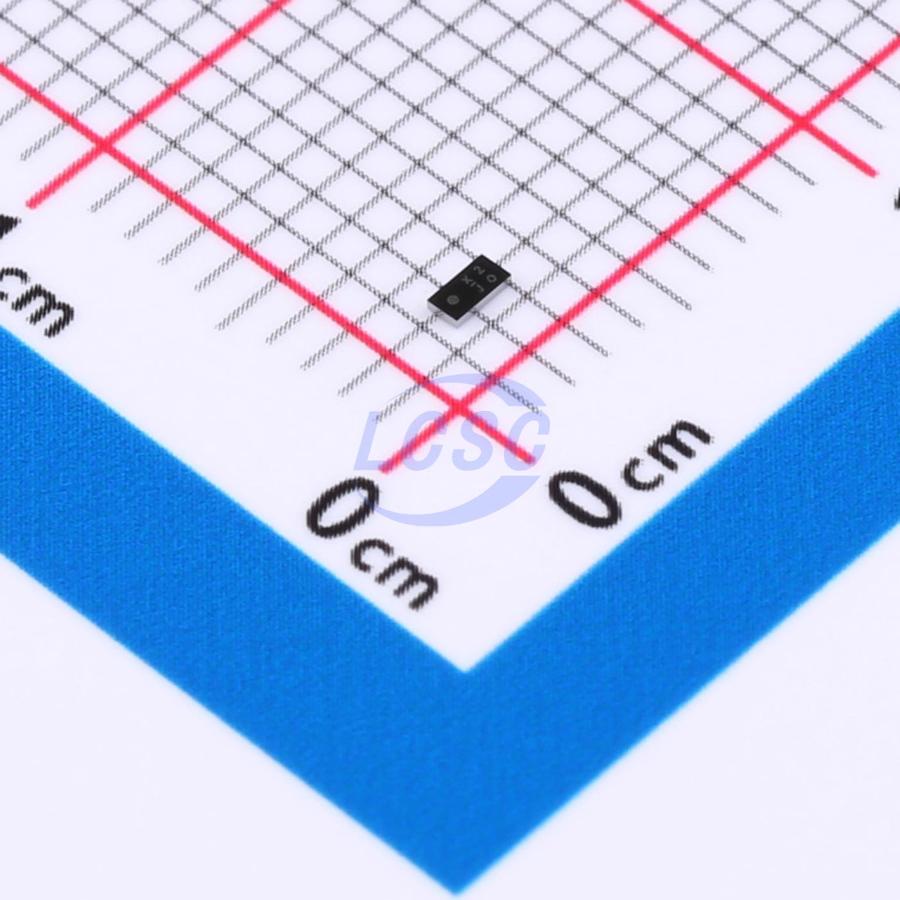

SDM2U30CSP-7
1 Independent 30V 480mV@2A 2A X3-WLB1608-2 Single Diodes RoHS
X3-WLB1608-2ROHS3 CompliantActive
Voltage： 30V Current： 2A
- Manufacturer
- DIODES
- Manufacturer part #
- SDM2U30CSP-7
- Store part #
- C3001723
- Package / case
- X3-WLB1608-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C3001723
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.51 | ₹72.55 |
| 50+ | ₹14.22 | ₹711.00 |
| 150+ | ₹14.04 | ₹2,106.00 |
| 500+ | ₹13.84 | ₹6,920.00 |
5 × ₹14.51
₹72.55
excl. GST
₹85.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SDM2U30CSP-7
₹72.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 480mV@2A
- Reverse Leakage Current (Ir)
- 150uA@30V
- Non-Repetitive Peak Forward Surge Current
- 28A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
The SDM2U30CSP are 30-volt 2A Schottky barrier rectifiers that are optimized for low-forward voltage drop and low leakage current, housed in compact chip-scale package (CSP) that occupies only 1.28mm² board space with low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency whilst at the same time reducing board space.
Applications
- Blocking diodes
- Boost diodes
- Switching diodes
- Reverse protection diodes
Key features
- Low-forward voltage (VF) minimizes conduction losses and improves efficiency.
- Reduced high-temperature reverse leakage; Increased reliability against thermal runaway failure in high-temperature operation.
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SDM2U40CSP-7B#C5125759DIODES · X3-WLB1608-2 | DIODES | X3-WLB1608-2 | 75 | ₹24.58 · 75 in stock | View |
 | SDM2A40CSP-7B#C6671609DIODES · X3-WLB1608-2 | DIODES | X3-WLB1608-2 | 1,165 | ₹19.58 · 1,165 in stock | View |
 | TPMEG2020EPK#C22358688TECH PUBLIC · DFN1608-2 | TECH PUBLIC | DFN1608-2 | 4,235 | ₹14.21 · 4,235 in stock | View |
 | TPB2A40-1608#C22358694TECH PUBLIC · DFN1608-2 | TECH PUBLIC | DFN1608-2 | 3,990 | ₹10.27 · 3,990 in stock | View |
