DIODESDatasheet (PDF)

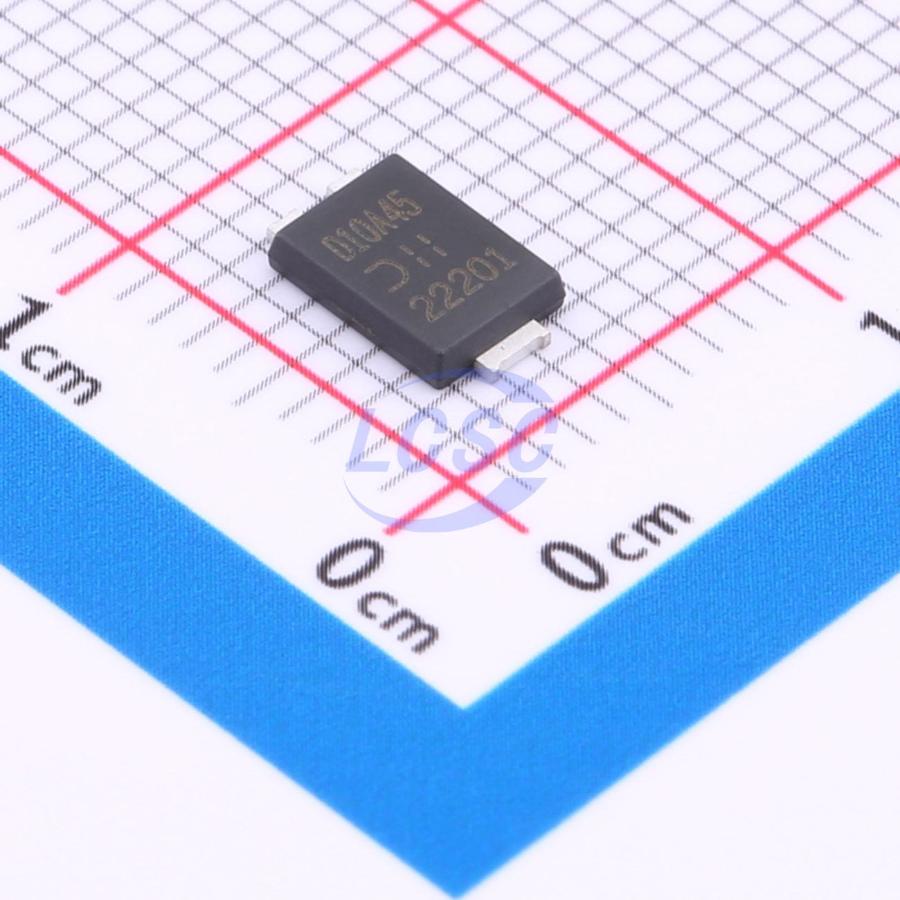

SDT10A45P5-7
1 Independent 45V 470mV@10A 10A Power-DI-5-3 Single Diodes RoHS
Power-DI-5-3ROHS3 CompliantActive
Voltage: 45V Current: 10A
- Manufacturer
- DIODES
- Manufacturer part #
- SDT10A45P5-7
- Store part #
- C2759901
- Package / case
- Power-DI-5-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
640 in stock
#C2759901
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.15 | ₹220.75 |
| 50+ | ₹36.69 | ₹1,834.50 |
| 150+ | ₹33.50 | ₹5,025.00 |
| 1,500+ | ₹29.50 | ₹44,250.00 |
| 3,000+ | ₹27.73 | ₹83,190.00 |
| 4,500+ | ₹26.66 | ₹1,19,970.00 |
5 × ₹44.15
₹220.75
excl. GST
₹260.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
SDT10A45P5-7
₹220.75 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 470mV@10A
- Reverse Leakage Current (Ir)
- 300uA@45V
- Non-Repetitive Peak Forward Surge Current
- 180A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
Packaged in the compact thermally efficient PowerDi5, the SDT10A45P5 provides very low VF and excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in DC-DC Converters, AC-DC Adaptors.
Applications
- DC-DC Converters
- AC-DC Adaptors
Key features
- Low Forward Voltage Drop
- Excellent High Temperature Stability
- Soft, Fast Switching Capability
- +150℃ Operating Junction Temperature
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SDT10H50P5-7#C5886161DIODES · PowerDI5 | DIODES | PowerDI5 | 83 | ₹46.08 · 83 in stock | View | |
 | SDT15H50P5-7#C5329410DIODES · PowerDI5 | DIODES | PowerDI5 | 24 | ₹222.08 · 24 in stock | View |
 | SDT15H50P5-13#C5909320DIODES · PowerDI5 | DIODES | PowerDI5 | 86 | ₹162.60 · 86 in stock | View |
 | SDT12A120P5-13#C6294084DIODES · PowerDI5 | DIODES | PowerDI5 | 5 | ₹76.06 · 5 in stock | View |
 | G15H150D5#C6258690DIODES · PowerDI5 | DIODES | PowerDI5 | 95 | ₹99.49 · 95 in stock | View |
