DIODESDatasheet (PDF)

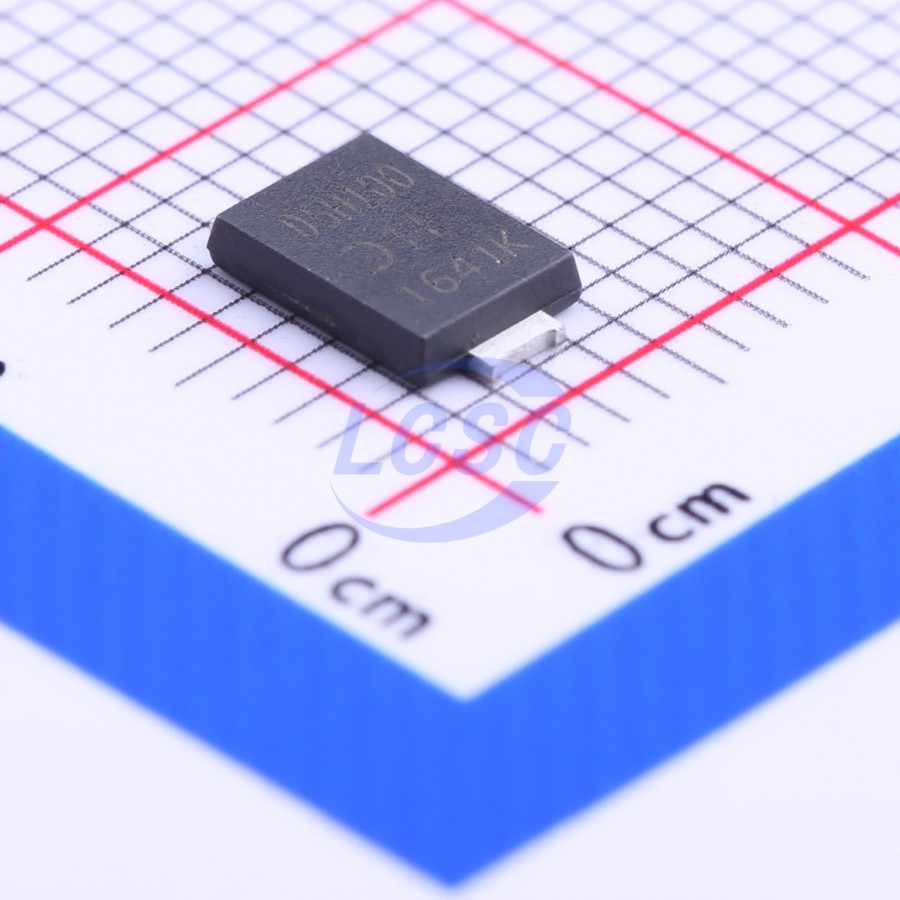

SDT5H100P5-7
1 Independent 100V 620mV@5A 5A Power-DI-5 Single Diodes RoHS
Power-DI-5ROHS3 CompliantActive
Voltage: 100V Current: 5A
- Manufacturer
- DIODES
- Manufacturer part #
- SDT5H100P5-7
- Store part #
- C151345
- Package / case
- Power-DI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,579 in stock
#C151345
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.67 | ₹86.67 |
| 10+ | ₹71.68 | ₹716.80 |
| 30+ | ₹65.38 | ₹1,961.40 |
| 100+ | ₹57.35 | ₹5,735.00 |
| 500+ | ₹53.87 | ₹26,935.00 |
| 1,500+ | ₹48.22 | ₹72,330.00 |
1 × ₹86.67
₹86.67
excl. GST
₹102.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
SDT5H100P5-7
₹86.67 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 620mV@5A
- Reverse Leakage Current (Ir)
- 100uA@100V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Packaged in the compact thermally efficient PowerDI 5 package, the SDT5H100P5 provides very low γF and excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in DC- DC Converters and AC- DC Adaptors.
Applications
- DC- DC Converters
- AC- DC Adaptors
Key features
- Low Forward Voltage Drop
- Excellent High Temperature Stability
- Soft, Fast Switching Capability
- Lead- Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NRVTS10100PFST3G-HXY#C53262814HXY MOSFET · TO-277 | HXY MOSFET | TO-277 | 197 | ₹73.72 · 197 in stock | View |
 | SVT12100V_R2_00001#C5446688PANJIT · TO-277 | PANJIT | TO-277 | 105 | ₹54.68 · 105 in stock | View |
 | SS10U100#C2942775YANGJIE · TO-277 | YANGJIE | TO-277 | 13,910 | ₹51.24 · 13,910 in stock | View |
 | SS10100#C49270367KUU · TO-277B | KUU | TO-277B | 4,845 | ₹24.41 · 4,845 in stock | View |
 | SVT12100V_R1_00001#C263362PANJIT · TO-277 | PANJIT | TO-277 | 1,375 | ₹68.04 · 1,375 in stock | View |
