VISHAYDatasheet (PDF)

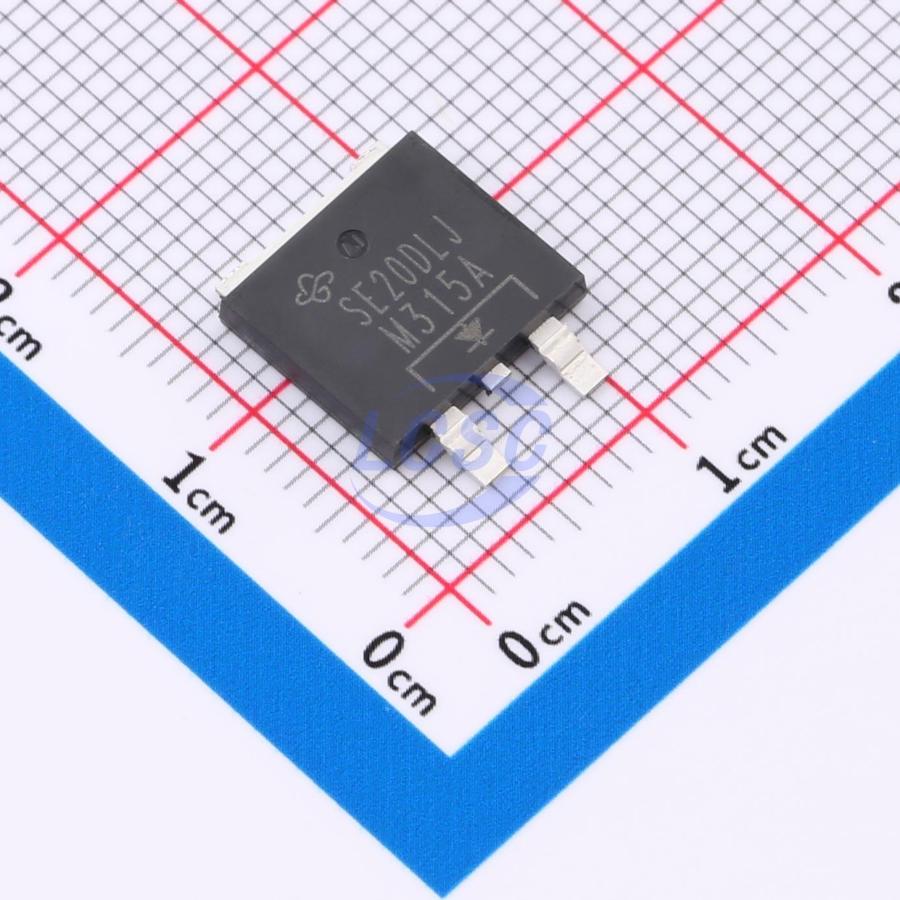

SE20DLJ-M3/I
330ns 1 Independent 600V 1V@20A 3.9A TO-263AC Single Diodes RoHS
TO-263ACROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SE20DLJ-M3/I
- Store part #
- C17499343
- Package / case
- TO-263AC
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C17499343
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹273.15 | ₹273.15 |
| 10+ | ₹230.35 | ₹2,303.50 |
| 30+ | ₹203.61 | ₹6,108.30 |
| 100+ | ₹176.24 | ₹17,624.00 |
| 500+ | ₹163.85 | ₹81,925.00 |
| 1,000+ | ₹158.63 | ₹1,58,630.00 |
1 × ₹273.15
₹273.15
excl. GST
₹322.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SE20DLJ-M3/I
₹273.15 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 330ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Pd - Power Dissipation
- 200mW
- Voltage - Forward(Vf@If)
- 1V@20A
- Reverse Leakage Current (Ir)
- 5uA@600V
- Current - Rectified
- 3.9A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.89 g
Overview
Applications
- General-purpose, power line polarity protection for consumer and automotive applications
Key features
- Ultra-thin profile - typical height 1.7mm
- Low forward voltage drop
- AEC-Q101 qualified versions available
- MSL Level 1 per J-STD-020, LF maximum peak temperature 260℃
- Material Category: For compliance definitions, see www.vishay.com/doc?99912
