VISHAYDatasheet (PDF)

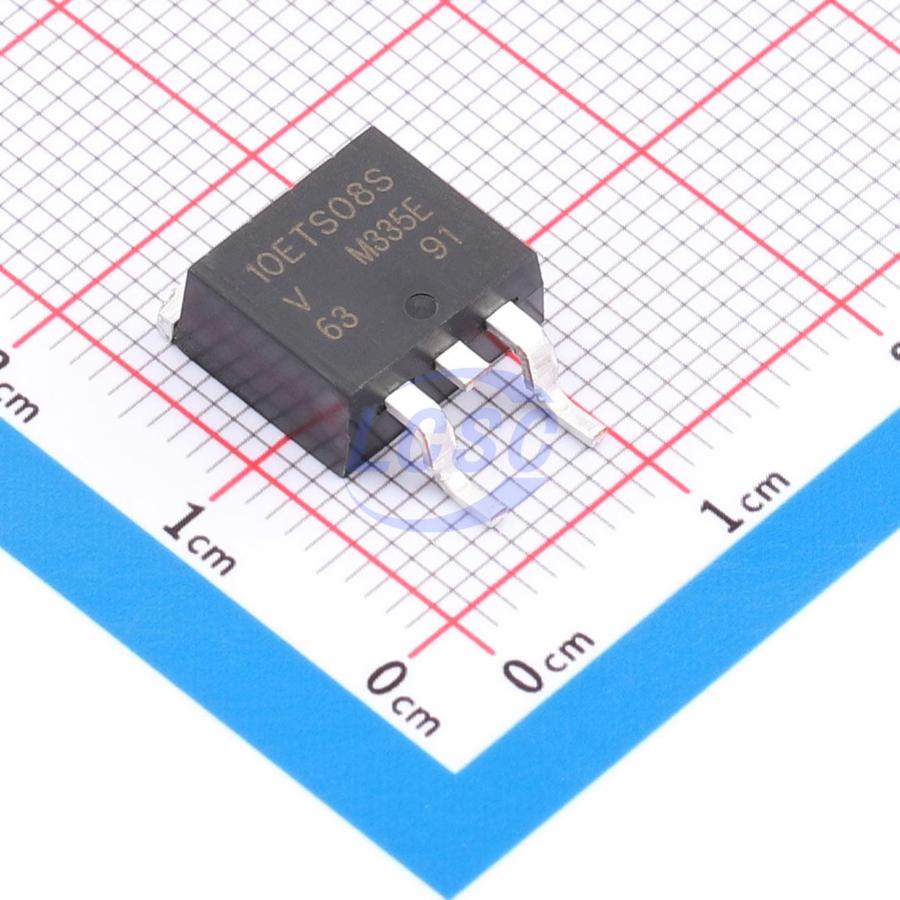

VS-10ETS08STRL-M3
1 Independent 800V 1.1V@10A 10A TO-263AB Single Diodes RoHS
TO-263ABROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-10ETS08STRL-M3
- Store part #
- C17370848
- Package / case
- TO-263AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C17370848
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹363.68 | ₹363.68 |
| 10+ | ₹358.52 | ₹3,585.20 |
| 30+ | ₹355.08 | ₹10,652.40 |
| 100+ | ₹351.64 | ₹35,164.00 |
1 × ₹363.68
₹363.68
excl. GST
₹429.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
VS-10ETS08STRL-M3
₹363.68 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 800V
- Voltage - Forward(Vf@If)
- 1.1V@10A
- Reverse Leakage Current (Ir)
- 50uA
- Non-Repetitive Peak Forward Surge Current
- 160A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.935 g
Overview
The VS-10ETS..S-M3 rectifier series is optimized for extremely low forward voltage drop while maintaining moderate leakage current. The glass passivation technology employed enables reliable operation at junction temperatures up to 150°C. Thermal resistance is 40°C/W when mounted on a 1 square inch (650 mm²), 4 oz (140 μm) copper FR-4 or G-10 PCB.
Applications
- Input rectifier, Vishay switch, and output rectifier (in identical package outline)
Key features
- MSL Level 1 per J-STD-020, LF max peak temperature 245℃
- Glass passivated chip junction
- Designed and qualified per JEDEC-JESD 47
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-E5TX3012S2LHM3#C20039224VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 25 | ₹520.51 · 25 in stock | View |
 | VS-20ETS08S-M3#C17187485VISHAY · TO-263AB | VISHAY | TO-263AB | 134 | ₹419.72 · 134 in stock | View |
| VS-20ETS12S-M3#C17582196VISHAY · TO-263AB | VISHAY | TO-263AB | On request | ₹310.42 · 0 in stock | View | |
 | VS-E5TH3012S2LHM3#C17377120VISHAY · TO-263AB | VISHAY | TO-263AB | 6 | ₹441.01 · 6 in stock | View |
 | VS-HFA16TB120S-M3#C17510425VISHAY · TO-263AB | VISHAY | TO-263AB | 10 | ₹1,376.14 · 10 in stock | View |
