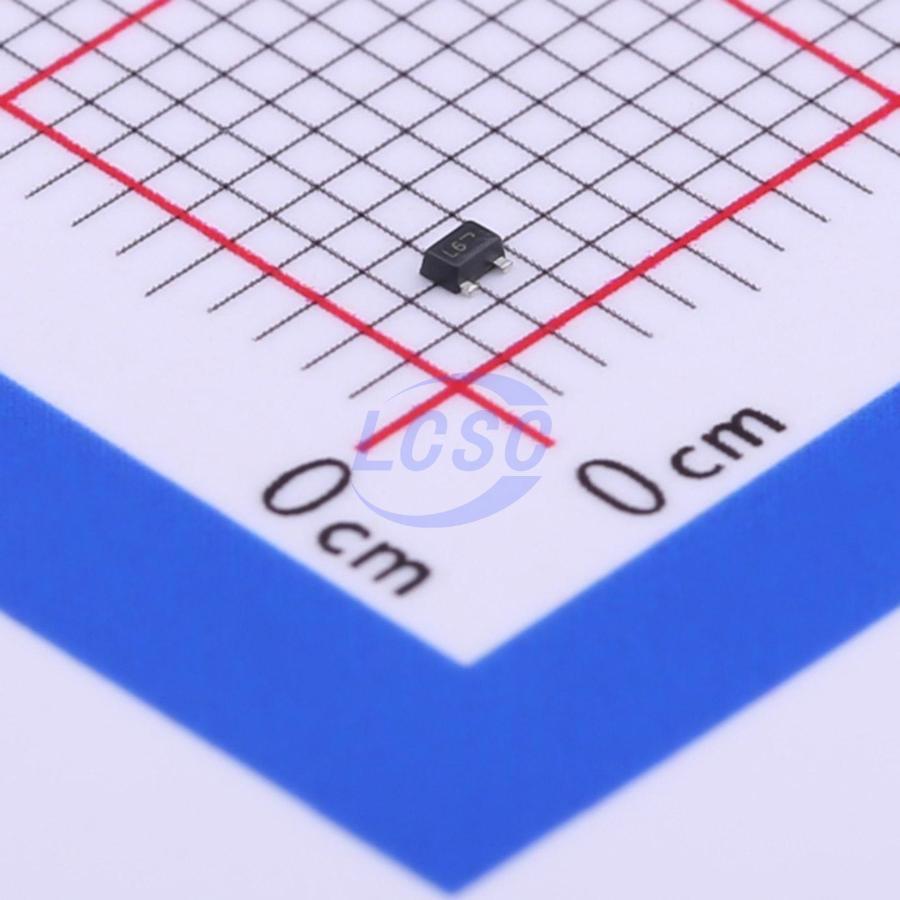

SESD7L5.0DT5G

The ESD7L Series is designed to protect voltage sensitive components from damage due to ESD in applications that require ultra low capacitance to preserve signal integrity. Excellent clamping capability, low leakage and fast response time are combined with an ultra low diode capacitance of 0.5 pF to provide best in class protection from IC damage due to ESD. The ultra small SOT−723 package is ideal for designs where board space is at a premium. The ESD7L Series can be used to protect two uni−directional lines or one bi−directional line. When used to protect one bi−directional line, the effective capacitance is 0.25 pF. Because of its low capacitance, it is well suited for protecting high frequency signal lines such as USB2.0 high speed and antenna line applications.

Applications

• USB2.0 high speed
• antenna line

Key features

• Low Capacitance 0.5 pF Typical
• Low Clamping Voltage
• Small Body Outline Dimensions: 0.047” x 0.047” (1.20 mm x 1.20 mm)
• Low Body Height: 0.020” (0.5 mm)
• Stand−off Voltage: 5 V
• Low Leakage
• Response Time is Typically <1.0 ns
• IEC61000−4−2 Level 4 ESD Protection
• S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• This is a Pb−Free Device
