HXY MOSFETDatasheet (PDF)

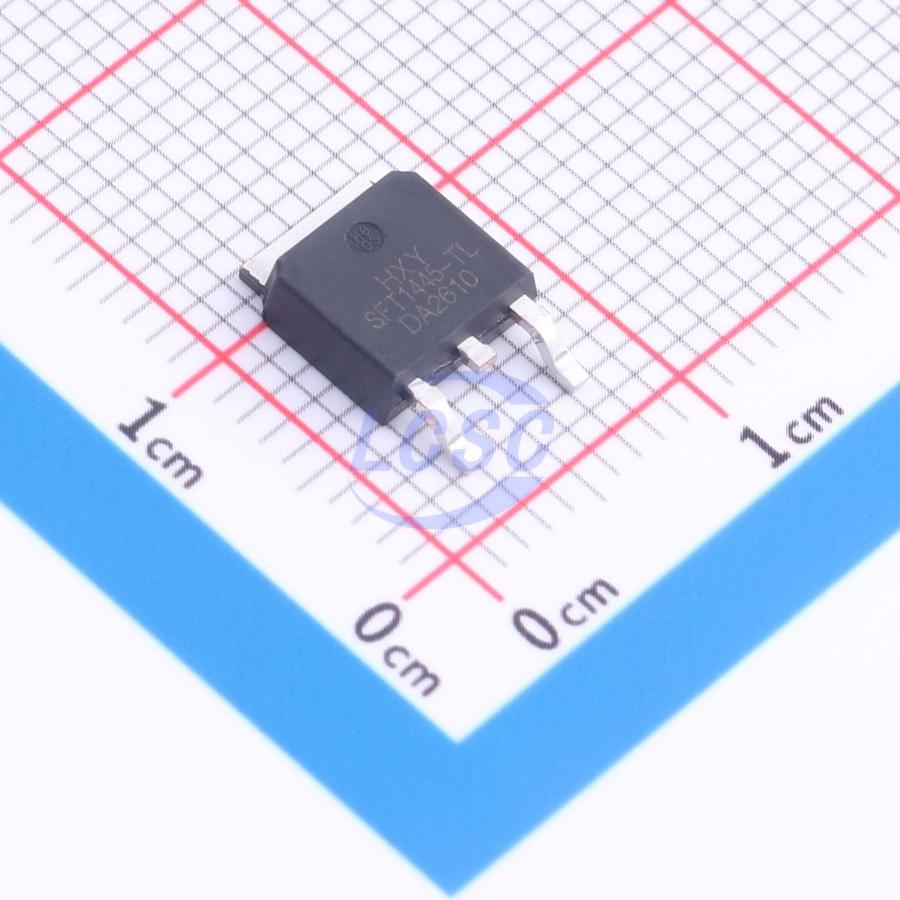

SFT1445-TL-H-HXY
100V 20A 34.7W 80mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SFT1445-TL-H-HXY
- Store part #
- C54582570
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C54582570
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.17 | ₹220.85 |
| 50+ | ₹34.99 | ₹1,749.50 |
| 150+ | ₹31.06 | ₹4,659.00 |
| 500+ | ₹26.16 | ₹13,080.00 |
| 2,500+ | ₹23.96 | ₹59,900.00 |
| 5,000+ | ₹22.65 | ₹1,13,250.00 |
5 × ₹44.17
₹220.85
excl. GST
₹260.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SFT1445-TL-H-HXY
₹220.85 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.535nF
- Pd - Power Dissipation
- 34.7W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.398 g
Overview
The SFT1445-TL-H employs advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = 100V, ID = 20A
- RDS(ON) < 87mΩ (@ VGS = 10V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTD6416ANT4G-HXY#C18198386HXY MOSFET · TO-252 | HXY MOSFET | TO-252 | 120 | ₹28.14 · 120 in stock | View |
 | AUIRLR3410-HXY#C22366628HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 1,805 | ₹27.10 · 1,805 in stock | View |
 | IRFR3910PBF-HXY#C22366629HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 185 | ₹26.79 · 185 in stock | View |
 | IRLR3410PBF-HXY#C22366630HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 165 | ₹32.23 · 165 in stock | View |
 | HXY20N10D#C3033434HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 500 | ₹25.43 · 500 in stock | View |
