VBsemi ElecDatasheet (PDF)

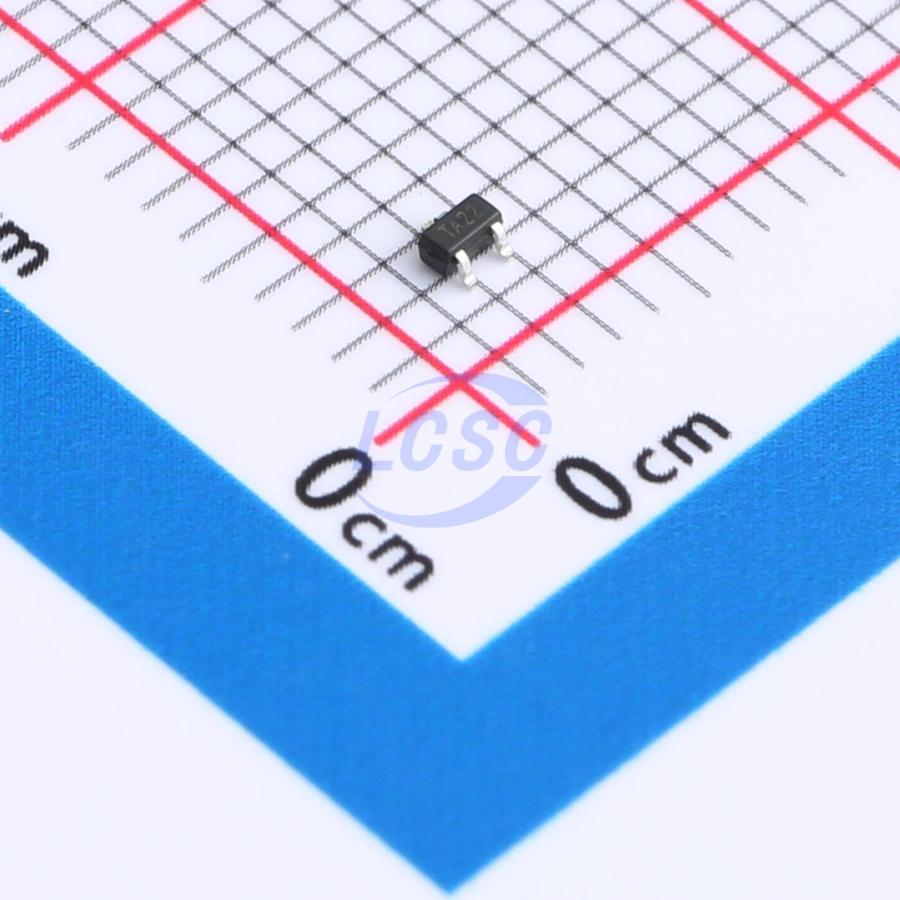

Si1013R-T1-GE3-VB
P-Channel 20V 550mA 190mW Surface Mount SC-75-3
SC-75-3RoHSActive
MOSFET P-CH 20V 550mA SC-75-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- Si1013R-T1-GE3-VB
- Store part #
- C20626284
- Package / case
- SC-75-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C20626284
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.48 | ₹92.40 |
| 50+ | ₹14.75 | ₹737.50 |
| 150+ | ₹12.89 | ₹1,933.50 |
| 500+ | ₹11.48 | ₹5,740.00 |
| 3,000+ | ₹10.37 | ₹31,110.00 |
| 6,000+ | ₹9.80 | ₹58,800.00 |
5 × ₹18.48
₹92.40
excl. GST
₹109.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Si1013R-T1-GE3-VB
₹92.40 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 15pF
- Current - Continuous Drain(Id)
- 550mA
- Ciss-Input Capacitance
- 45pF
- Pd - Power Dissipation
- 190mW
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 450mΩ@4.5V;500mΩ@2.5V;600mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 1.65nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
Applications
- Load/power switch for portable devices
- Drivers: relays, solenoids, displays
- Battery-powered systems
Key features
- Trench power MOSFET
- 100% R<sub>DS(on)</sub> tested
- Fast switching speed
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMG1013T-VB#C22389012VBsemi Elec · SC-75-3 | VBsemi Elec | SC-75-3 | 20 | ₹17.81 · 20 in stock | View |
 | AO5401E-VB#C29778802VBsemi Elec · SC-75 | VBsemi Elec | SC-75 | 50 | ₹17.81 · 50 in stock | View |
 | VBTA2245N#C416340VBsemi Elec · SC-75-3 | VBsemi Elec | SC-75-3 | 1,075 | ₹18.35 · 1,075 in stock | View |
 | NTE4151PT1G-VB#C19626851VBsemi Elec · SC-75-3 | VBsemi Elec | SC-75-3 | On request | ₹18.43 · 0 in stock | View |
 | SSM3J36FS-VB#C558284VBsemi Elec · SC-75-3 | VBsemi Elec | SC-75-3 | On request | ₹18.48 · 0 in stock | View |
