VISHAYDatasheet (PDF)

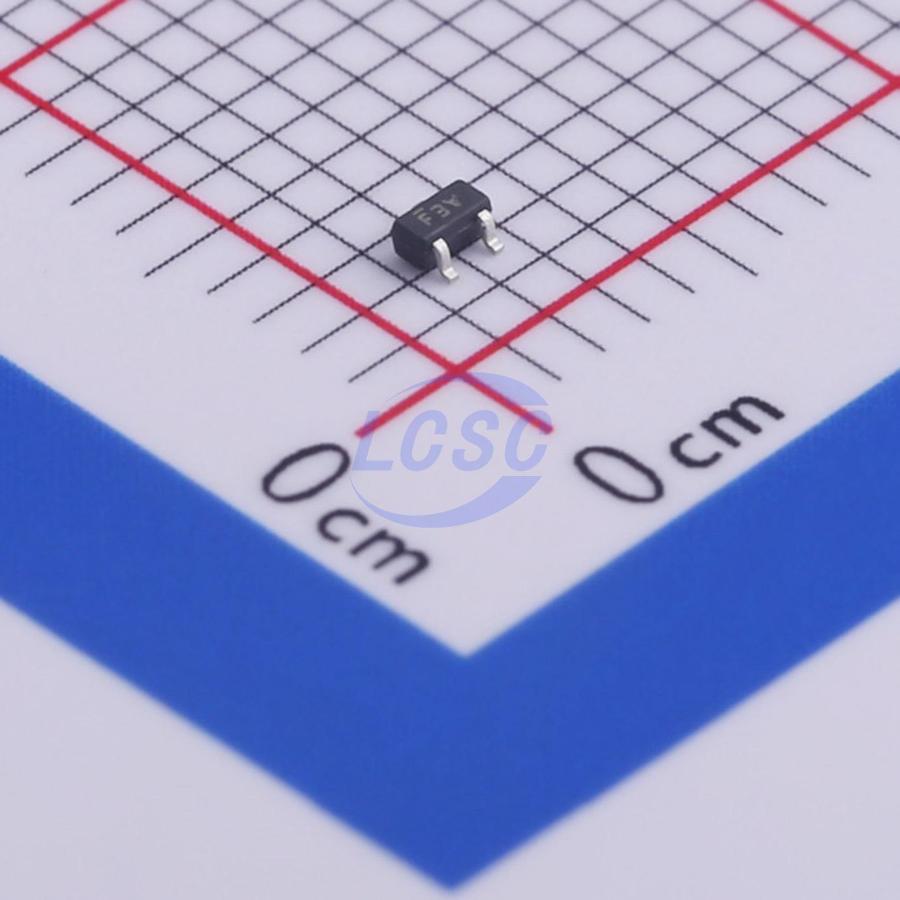

SI1021R-T1-GE3
P-Channel 60V 135mA 130mW Surface Mount SC-75A
SC-75AROHS3 CompliantActive
MOSFET P-CH 60V 135mA SC-75A
- Manufacturer
- VISHAY
- Manufacturer part #
- SI1021R-T1-GE3
- Store part #
- C467892
- Package / case
- SC-75A
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,628 in stock
#C467892
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.43 | ₹124.43 |
| 10+ | ₹100.11 | ₹1,001.10 |
| 30+ | ₹87.95 | ₹2,638.50 |
| 100+ | ₹75.79 | ₹7,579.00 |
| 500+ | ₹68.62 | ₹34,310.00 |
| 1,000+ | ₹64.93 | ₹64,930.00 |
1 × ₹124.43
₹124.43
excl. GST
₹146.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI1021R-T1-GE3
₹124.43 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 10pF
- Ciss-Input Capacitance
- 23pF
- Pd - Power Dissipation
- 130mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 135mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 4Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 1.7nC@15V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.013 g
Overview
Applications
- Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.
- Battery Operated Systems
- Power Supply Converter Circuits
- Solid-State Relays
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Power MOSFETs
- High-Side Switching
- Low On-Resistance: 4
- Low Threshold: - 2 V (typ.)
- Fast Switching Speed: 20 ns (typ.)
- Low Input Capacitance: 20 pF (typ.)
- Miniature Package
- ESD Protected: 2000 V
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PJE8439_R1_00001#C5375642PANJIT · SOT-523 | PANJIT | SOT-523 | On request | ₹6.72 · 0 in stock | View | |
 | LWS6T10AF#C53426737Lewa Micro · SOT-523 | Lewa Micro | SOT-523 | On request | ₹3.51 · 0 in stock | View |
| BSS84KT-TP#C6869215MCC · SOT-523 | MCC | SOT-523 | On request | ₹6.69 · 0 in stock | View | |
