VISHAYDatasheet (PDF)

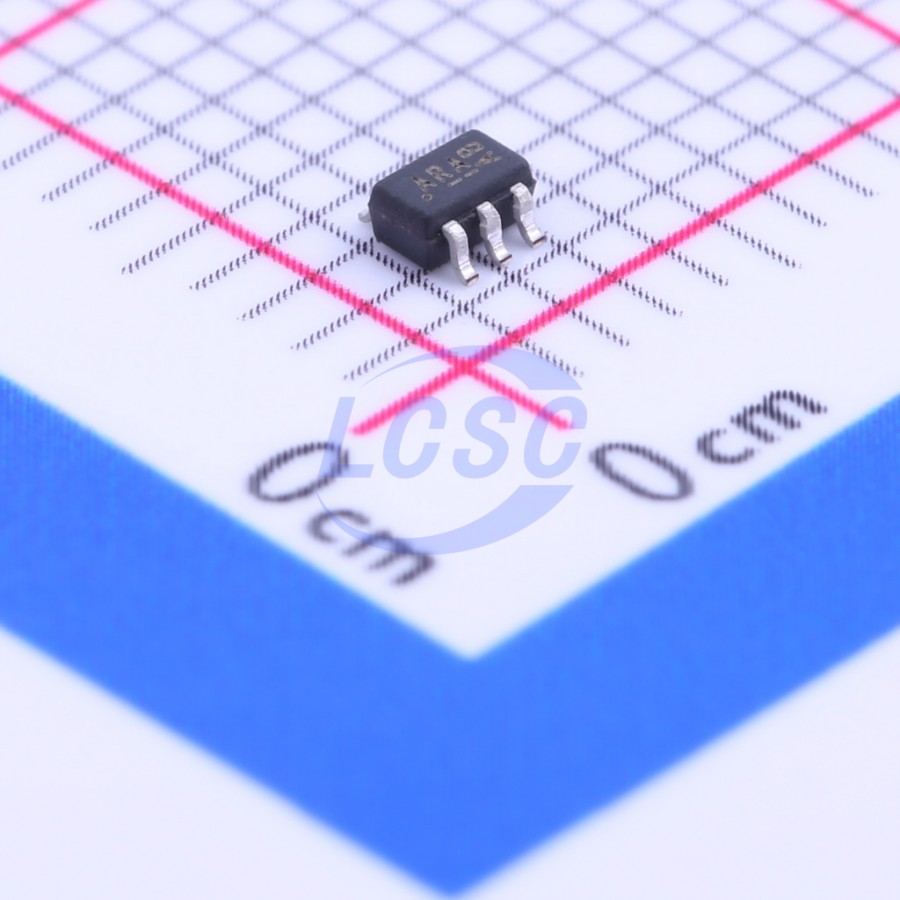

SI1416EDH-T1-GE3
N-Channel 30V 3.9A 2.8W Surface Mount SOT-363
SOT-363ROHS3 CompliantActive
MOSFET N-CH 30V 3.9A SOT-363
- Manufacturer
- VISHAY
- Manufacturer part #
- SI1416EDH-T1-GE3
- Store part #
- C145287
- Package / case
- SOT-363
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,500 in stock
#C145287
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.35 | ₹271.75 |
| 50+ | ₹42.23 | ₹2,111.50 |
| 150+ | ₹37.03 | ₹5,554.50 |
| 500+ | ₹30.55 | ₹15,275.00 |
| 3,000+ | ₹24.45 | ₹73,350.00 |
| 6,000+ | ₹22.73 | ₹1,36,380.00 |
5 × ₹54.35
₹271.75
excl. GST
₹320.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI1416EDH-T1-GE3
₹271.75 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 3.9A
- Pd - Power Dissipation
- 2.8W
- RDS(on)
- 77mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The new single 6-pin SC-70 package with a copper leadframe enables improved on-resistance values and enhanced thermal performance as compared to the existing 3-pin and 6-pin packages with Alloy 42 leadframes. These devices are intended for small to medium load applications where a miniaturized package is required. Devices in this package come in a range of on-resistance values, in n-channel and p-channel versions.
Applications
- Portable Devices such as Smart Phones and Tablet PCs
- DC/DC Converters
- High Frequency Switching
- OVP Switch
- Load Switch
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- Typical ESD Protection 1500 V in HBM
- 100 % Rg Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT
- HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTJS3157NT1G-VB#C7569043VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 20 | ₹46.21 · 20 in stock | View |
 | PMPB55XNEAX-VB#C52148649VBsemi Elec · SC-70-6L | VBsemi Elec | SC-70-6L | 10 | ₹95.14 · 10 in stock | View |
 | BUK6D38-30EX-VB#C52148785VBsemi Elec · SC-70-6L | VBsemi Elec | SC-70-6L | 10 | ₹95.14 · 10 in stock | View |
 | BUK6D72-30EX-VB#C52148786VBsemi Elec · SC-70-6L | VBsemi Elec | SC-70-6L | 10 | ₹95.14 · 10 in stock | View |
 | BUK4D60-30X-VB#C52148787VBsemi Elec · SC-70-6L | VBsemi Elec | SC-70-6L | 10 | ₹95.14 · 10 in stock | View |
