JSMSEMIDatasheet (PDF)

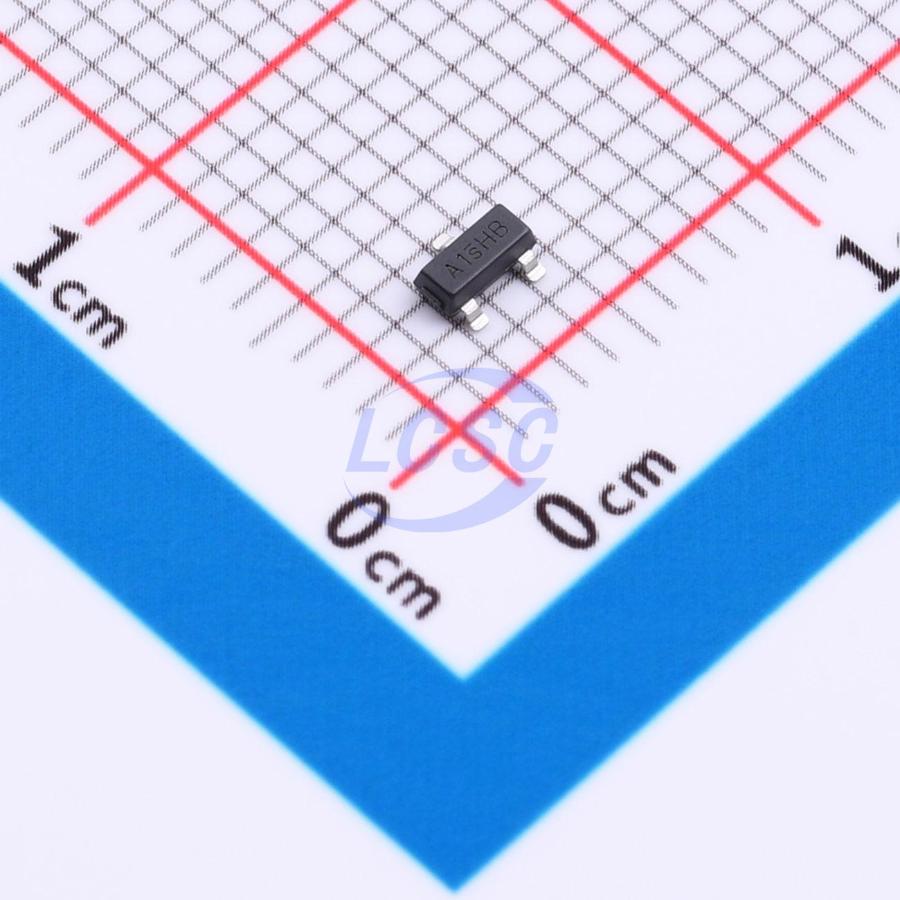

SI2301-JSM
1.2W 20V 3.5A 49mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SI2301-JSM
- Store part #
- C18189063
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,080 in stock
#C18189063
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.86 | ₹57.20 |
| 200+ | ₹2.21 | ₹442.00 |
| 600+ | ₹1.85 | ₹1,110.00 |
| 3,000+ | ₹1.64 | ₹4,920.00 |
| 9,000+ | ₹1.46 | ₹13,140.00 |
| 21,000+ | ₹1.36 | ₹28,560.00 |
20 × ₹2.86
₹57.20
excl. GST
₹67.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2301-JSM
₹57.20 for 20 + GST
Specifications
- Output Capacitance(Coss)
- 50pF
- Ciss-Input Capacitance
- 330pF
- Pd - Power Dissipation
- 1.2W
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3.5A
- Reverse Transfer Capacitance (Crss)
- 45pF
- RDS(on)
- 49mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6.6nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
Applications
- High-side load switch
- Switching circuit
- High-speed line driver
Key features
- Low on-resistance @ VGs=-4.5V
- -3.3V logic level control
- P-channel SOT23 package
- Lead-free, RoHS compliant
