MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
TECH PUBLICDatasheet (PDF)

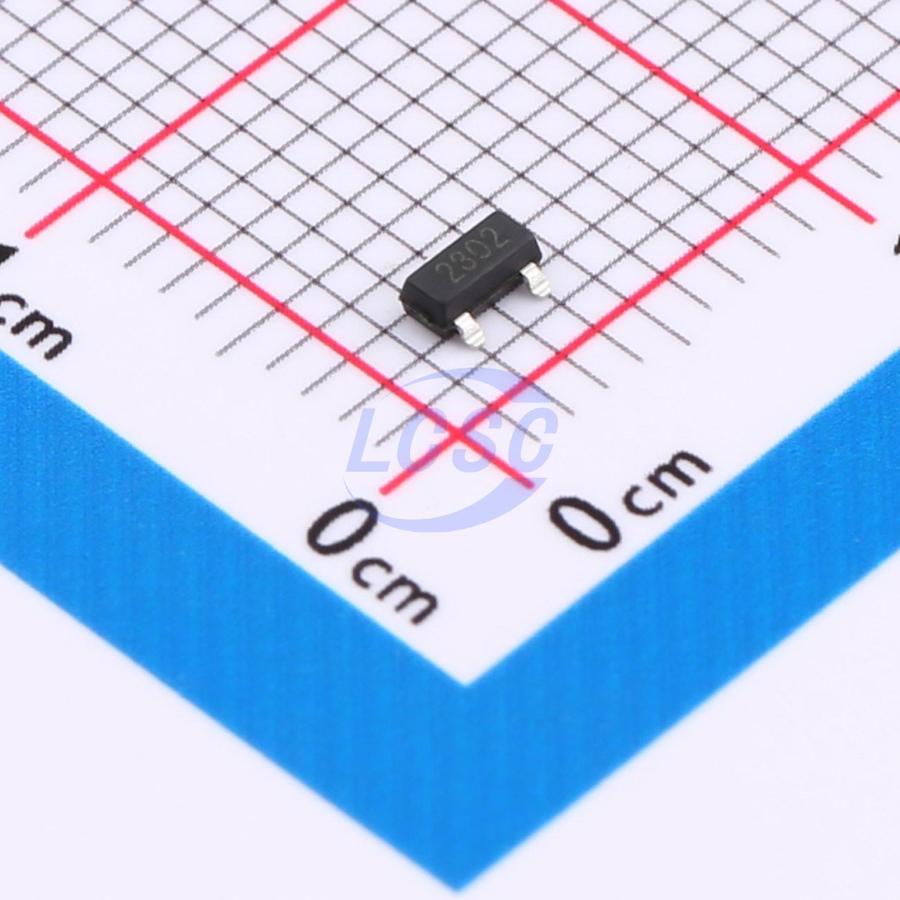

Si2302ADS
20V 4A 1W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 4A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- Si2302ADS
- Store part #
- C41348105
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C41348105
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.63 | ₹66.30 |
| 100+ | ₹5.27 | ₹527.00 |
| 300+ | ₹4.59 | ₹1,377.00 |
| 3,000+ | ₹4.09 | ₹12,270.00 |
| 6,000+ | ₹3.68 | ₹22,080.00 |
| 9,000+ | ₹3.48 | ₹31,320.00 |
10 × ₹6.63
₹66.30
excl. GST
₹78.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Si2302ADS
₹66.30 for 10 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 300pF
- Pd - Power Dissipation
- 1W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 59mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Applications
- Load/Power switch
- Interfacing, logic switching
- Battery management for ultra protable electronics
Key features
- 30V, 50A
- R<sub>DS(ON)</sub> 3.88mΩ @ V<sub>GS</sub> = 10V (typical)
- Advanced trench technology
- Excellent R<sub>DS(ON)</sub> and low gate charge
- Lead-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2312BDS#C5122032TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,560 | ₹9.95 · 2,560 in stock | View |
 | SI2312CDS#C5122033TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 200 | ₹9.45 · 200 in stock | View |
 | DMG3414U#C5123901TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 30 | ₹8.96 · 30 in stock | View |
 | FDN339AN#C5123902TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,340 | ₹9.50 · 1,340 in stock | View |
 | NDS331N#C5123903TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,100 | ₹11.96 · 4,100 in stock | View |
