VBsemi ElecDatasheet (PDF)

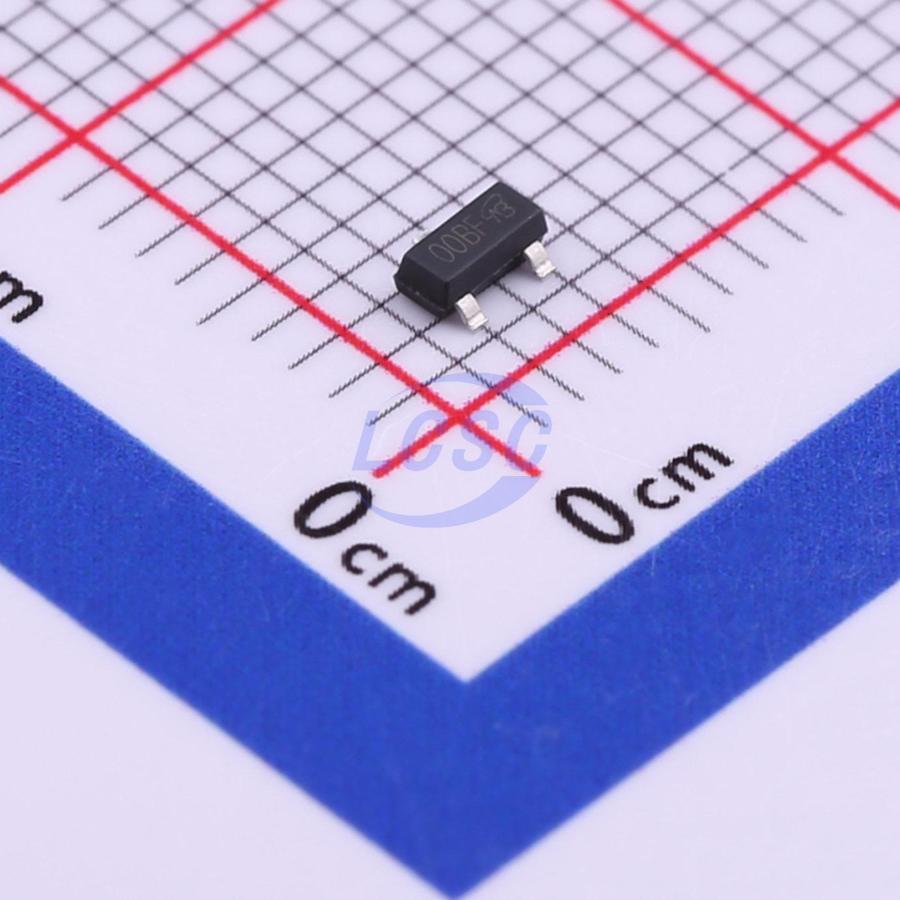

SI2302CDS-T1-GE3-VB
N-Channel 20V 6A 2.1W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 20V 6A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI2302CDS-T1-GE3-VB
- Store part #
- C558244
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C558244
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.23 | ₹112.30 |
| 100+ | ₹9.37 | ₹937.00 |
| 300+ | ₹8.44 | ₹2,532.00 |
| 3,000+ | ₹6.24 | ₹18,720.00 |
| 6,000+ | ₹5.69 | ₹34,140.00 |
| 9,000+ | ₹5.40 | ₹48,600.00 |
10 × ₹11.23
₹112.30
excl. GST
₹132.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2302CDS-T1-GE3-VB
₹112.30 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 865pF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.054 g
Overview
Applications
- DC/DC converter
- Load switch for portable applications
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDN339AN-NL-VB#C18212433VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 70 | ₹9.10 · 70 in stock | View |
 | CES2308-VB#C18794927VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹9.10 · 30 in stock | View |
 | 2SK3576-T1B-A-VB#C19190125VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 90 | ₹9.00 · 90 in stock | View |
 | MVGSF1N03LT1G-VB#C19190284VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 70 | ₹9.10 · 70 in stock | View |
 | ZXM61N02FTC-VB#C19632264VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 70 | ₹9.10 · 70 in stock | View |
