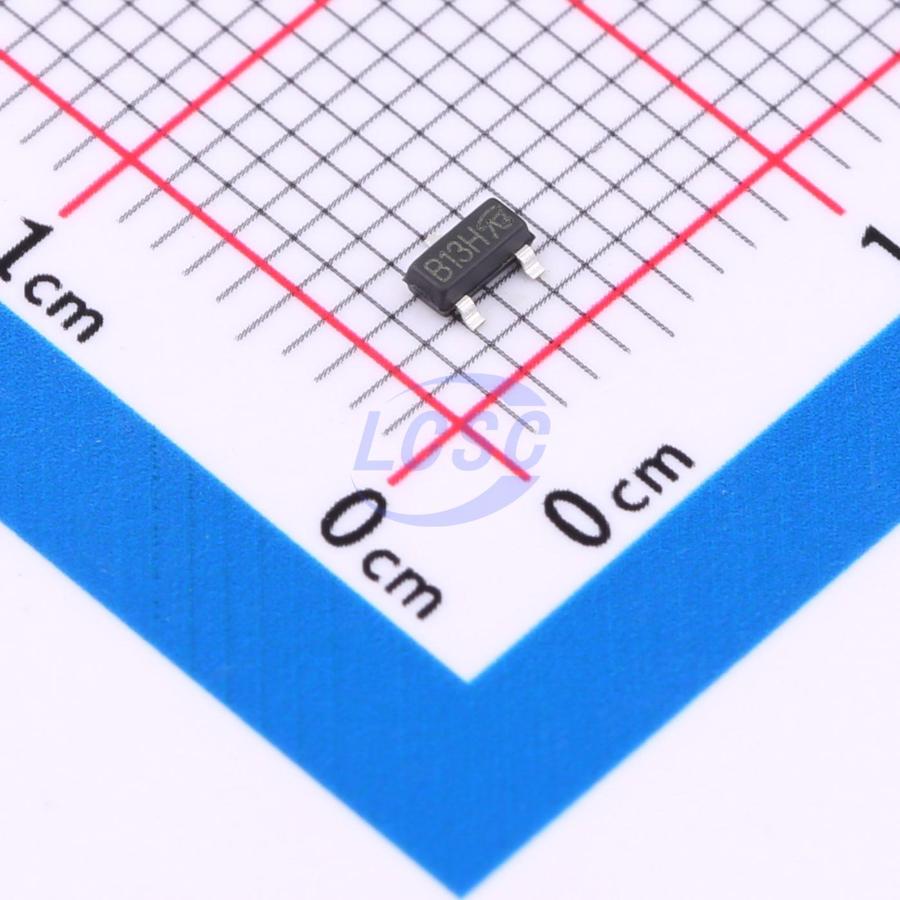

SI2304DDS-T1-GE3-VB
30V 6.5A 1.7W 33mΩ@4.5V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
MOSFET N-CH 30V 6.5A SOT-23
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI2304DDS-T1-GE3-VB
- Store part #
- C22388969
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22388969
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.39 | ₹71.95 |
| 50+ | ₹11.66 | ₹583.00 |
| 150+ | ₹10.29 | ₹1,543.50 |
| 500+ | ₹9.26 | ₹4,630.00 |
| 3,000+ | ₹8.44 | ₹25,320.00 |
| 6,000+ | ₹8.03 | ₹48,180.00 |
5 × ₹14.39
₹71.95
excl. GST
₹84.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2304DDS-T1-GE3-VB
₹71.95 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 6.5A
- Ciss-Input Capacitance
- 335pF
- Pd - Power Dissipation
- 1.7W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 33mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
Applications
- Synchronous Rectification - Power Supply
Key features
- Halogen-free product as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2338DS-T1-E3-VB#C18212491VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹13.39 · 20 in stock | View |
 | 3400 CMN3400-VB#C18212599VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹13.39 · 100 in stock | View |
 | NDS355AN-NL-VB#C19190103VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 40 | ₹13.24 · 40 in stock | View |
 | ZXMN3B01FTA-VB#C20755178VBsemi Elec · SOT-23 | VBsemi Elec | SOT-23 | 5 | ₹14.55 · 5 in stock | View |
 | NTR4503NT3G-VB#C20755382VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹13.24 · 50 in stock | View |
