VBsemi ElecDatasheet (PDF)

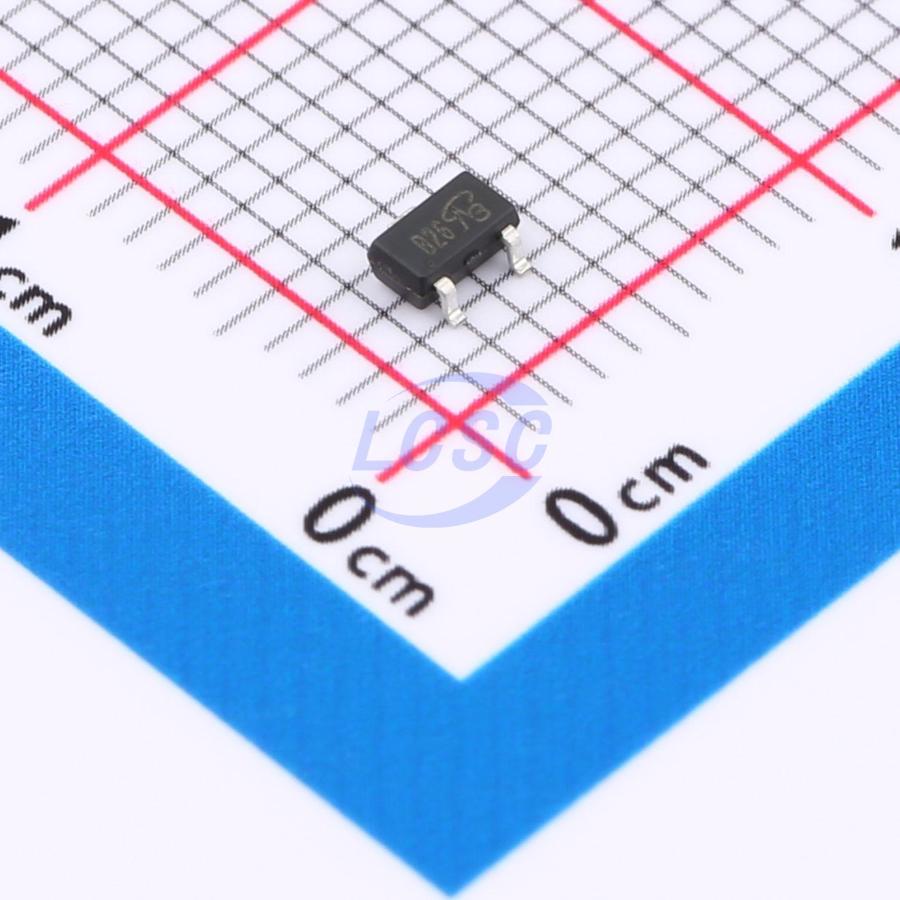

SI2309CDS-T1-E3-VB
P-Channel 60V 5.2A 27W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 60V 5.2A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI2309CDS-T1-E3-VB
- Store part #
- C45662582
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C45662582
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.70 | ₹243.50 |
| 50+ | ₹40.58 | ₹2,029.00 |
| 150+ | ₹37.10 | ₹5,565.00 |
| 500+ | ₹32.76 | ₹16,380.00 |
| 3,000+ | ₹21.30 | ₹63,900.00 |
| 6,000+ | ₹20.15 | ₹1,20,900.00 |
5 × ₹48.70
₹243.50
excl. GST
₹287.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2309CDS-T1-E3-VB
₹243.50 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 170pF
- Current - Continuous Drain(Id)
- 5.2A
- Ciss-Input Capacitance
- 270pF
- Pd - Power Dissipation
- 27W
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 50mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
Applications
- Load switch for portable devices
Key features
- Isolated package
- High-voltage isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Drain-to-pin creepage distance = 4.8 mm
- P-channel
- Operating temperature 175 °C
- Dynamic dV/dt rating
- Low thermal resistance
- Available in lead-free (Pb-free) versions
