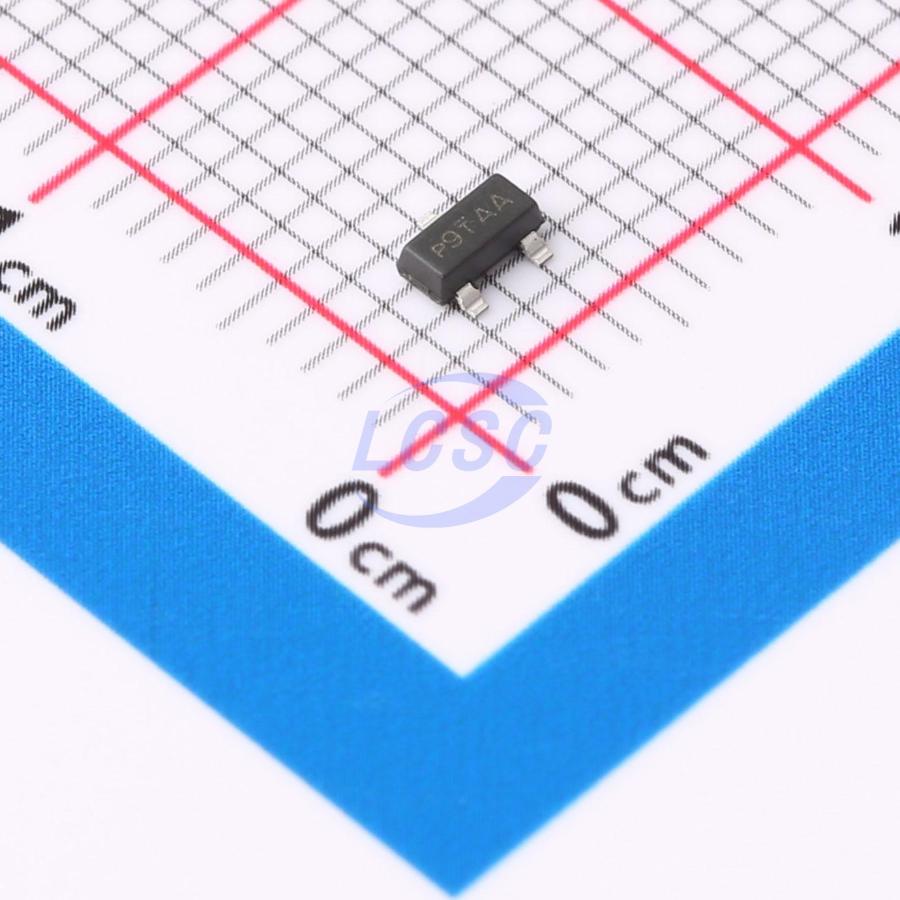

SI2318CDS-T1-BE3
N-Channel 40V 4.3A 5.6A 1.25W 2.1W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)ROHS3 CompliantActive
MOSFET N-CH 40V 4.3A 5.6A SOT-23(TO-236)
- Manufacturer
- VISHAY
- Manufacturer part #
- SI2318CDS-T1-BE3
- Store part #
- C6816032
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,745 in stock
#C6816032
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.35 | ₹236.75 |
| 50+ | ₹36.95 | ₹1,847.50 |
| 150+ | ₹32.49 | ₹4,873.50 |
| 500+ | ₹26.92 | ₹13,460.00 |
| 3,000+ | ₹24.45 | ₹73,350.00 |
| 6,000+ | ₹22.97 | ₹1,37,820.00 |
5 × ₹47.35
₹236.75
excl. GST
₹279.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2318CDS-T1-BE3
₹236.75 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 4.3A;5.6A
- Ciss-Input Capacitance
- 340pF
- Pd - Power Dissipation
- 1.25W;2.1W
- RDS(on)
- 42mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
Applications
- DC-DC Converters
- Load Switches
- Portable & Consumer Applications
Key features
- TrenchFET power MOSFET
- 100% gate resistance (Rg) tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | Si2318CDS-T1-GE3#C14498VISHAY · SOT-23 | VISHAY | SOT-23 | 21,240 | ₹44.24 · 21,240 in stock | View |
| SSM3K341R,LXHF#C5908551TOSHIBA · SOT-23F | TOSHIBA | SOT-23F | 1,077 | ₹53.30 · 1,077 in stock | View | |
 | CMN2308M#C5203849Cmos · SOT-23-3L | Cmos | SOT-23-3L | 1,025 | ₹16.02 · 1,025 in stock | View |
 | SI2318A#C2681218UMW · SOT-23 | UMW | SOT-23 | 2,18,840 | ₹6.51 · 2,18,840 in stock | View |
 | SSM3K341R,LF#C2932178TOSHIBA · SOT-23F | TOSHIBA | SOT-23F | 21,630 | ₹24.54 · 21,630 in stock | View |
