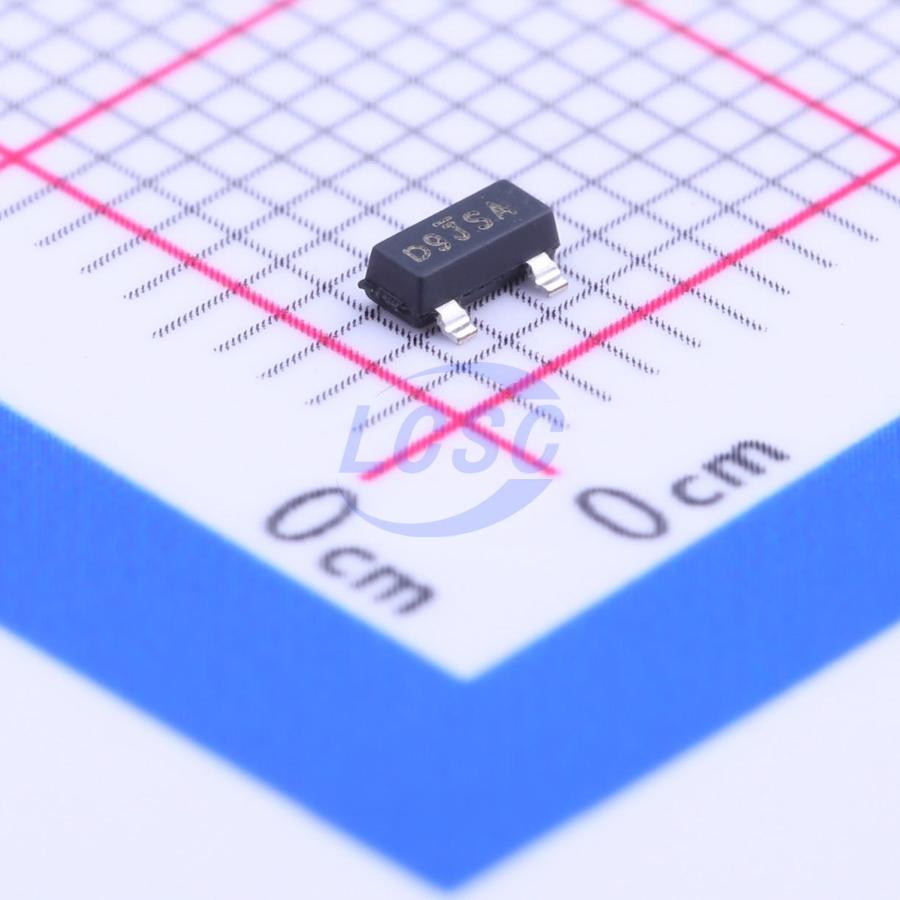

SI2329DS-T1-GE3
P-Channel 8V 6A 2.5W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 8V 6A SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- SI2329DS-T1-GE3
- Store part #
- C85167
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,571 in stock
#C85167
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.98 | ₹70.98 |
| 10+ | ₹55.74 | ₹557.40 |
| 30+ | ₹49.22 | ₹1,476.60 |
| 100+ | ₹41.16 | ₹4,116.00 |
| 500+ | ₹37.45 | ₹18,725.00 |
| 1,000+ | ₹35.27 | ₹35,270.00 |
1 × ₹70.98
₹70.98
excl. GST
₹83.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2329DS-T1-GE3
₹70.98 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 480pF
- Ciss-Input Capacitance
- 1.485nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 8V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 435pF
- RDS(on)
- 30mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 29nC@4.5V
- Vgs
- ±5V
- Gate Threshold Voltage (Vgs(th))
- 800mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
Applications
- Load Switch
- Low Voltage Gate Drive
- Low On-Resistance
- Battery Management in Portable Equipment
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100 % Rg Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT
- HALOGEN FREE
