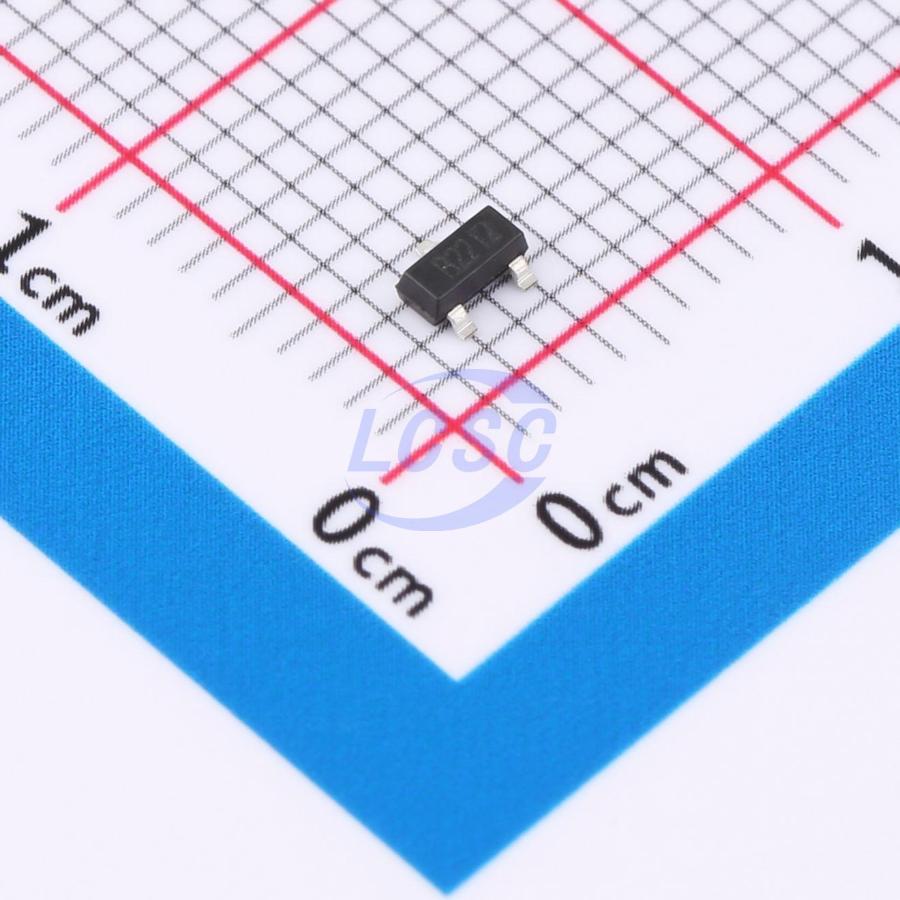

SI2333-TP-VB
P-Channel 20V 3.5A 3W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET P-CH 20V 3.5A SOT-23
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI2333-TP-VB
- Store part #
- C47993906
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C47993906
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.97 | ₹89.70 |
| 100+ | ₹7.09 | ₹709.00 |
| 300+ | ₹6.15 | ₹1,845.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹8.97
₹89.70
excl. GST
₹105.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2333-TP-VB
₹89.70 for 10 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 95pF
- Current - Continuous Drain(Id)
- 3.5A
- Ciss-Input Capacitance
- 620pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 65pF
- RDS(on)
- 90mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 16nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.28 g
Overview
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS215PH6327XTSA1-VB#C45662606VBsemi Elec · SOT-23-3 | VBsemi Elec | SOT-23-3 | 10 | ₹11.66 · 10 in stock | View |
 | BSH205G2R-VB#C45662607VBsemi Elec · SOT-23-3 | VBsemi Elec | SOT-23-3 | 20 | ₹9.16 · 20 in stock | View |
 | FDN338P-VB#C45662608VBsemi Elec · SOT-23-3 | VBsemi Elec | SOT-23-3 | 20 | ₹9.16 · 20 in stock | View |
 | DMP2123LQ-7-VB#C45662609VBsemi Elec · SOT-23-3 | VBsemi Elec | SOT-23-3 | 20 | ₹9.16 · 20 in stock | View |
 | SI2301CDS-T1-E3-VB#C45662604VBsemi Elec · SOT-23-3 | VBsemi Elec | SOT-23-3 | 980 | ₹9.90 · 980 in stock | View |
