VISHAYDatasheet (PDF)

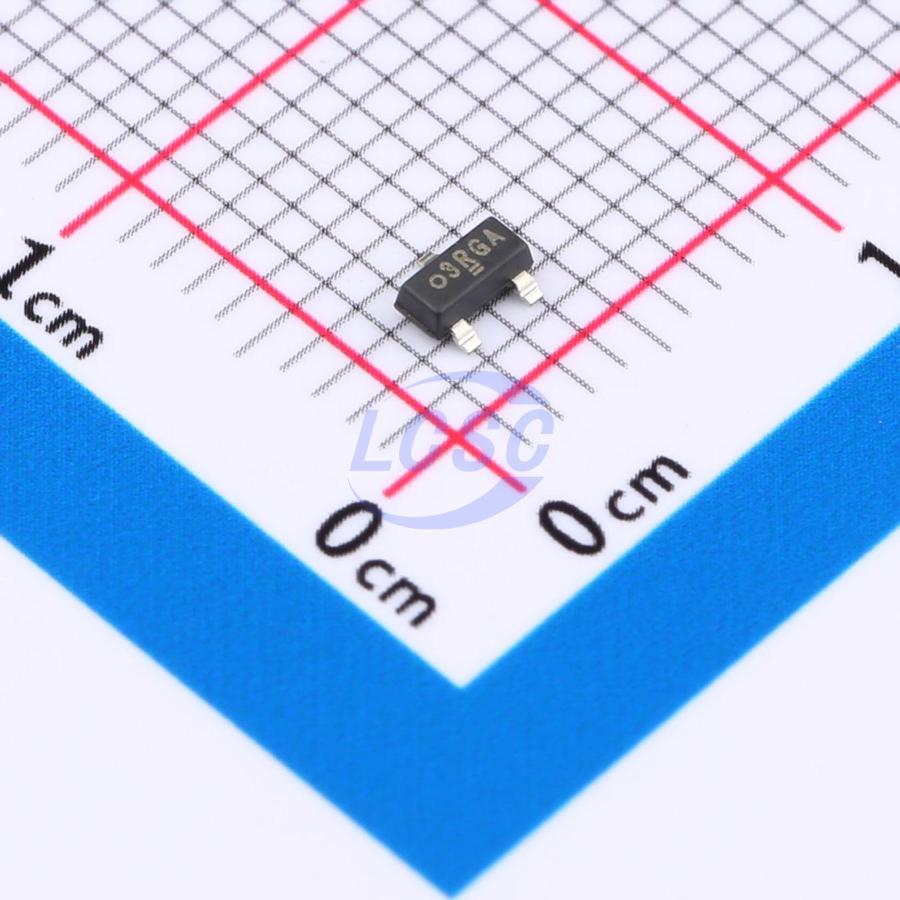

SI2333CDS-T1-GE3
P-Channel 12V 5.1A 1.25W 2.5W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 12V 5.1A SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- SI2333CDS-T1-GE3
- Store part #
- C48179
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,424 in stock
#C48179
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹182.07 | ₹182.07 |
| 10+ | ₹159.20 | ₹1,592.00 |
| 30+ | ₹147.66 | ₹4,429.80 |
| 100+ | ₹136.11 | ₹13,611.00 |
| 500+ | ₹129.36 | ₹64,680.00 |
| 1,000+ | ₹116.95 | ₹1,16,950.00 |
1 × ₹182.07
₹182.07
excl. GST
₹214.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2333CDS-T1-GE3
₹182.07 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 315pF
- Ciss-Input Capacitance
- 1.225nF
- Pd - Power Dissipation
- 1.25W;2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 5.1A
- Reverse Transfer Capacitance (Crss)
- 260pF
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 25nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
Applications
- Load Switch
- PA Switch
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT HALOGEN FREE Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2323CDS-T1-GE3#C59218VISHAY · SOT-23 | VISHAY | SOT-23 | 1,493 | ₹113.83 · 1,493 in stock | View |
 | SI2333CDS-T1-E3#C144846VISHAY · SOT-23 | VISHAY | SOT-23 | 2,354 | ₹81.17 · 2,354 in stock | View |
 | SI2333CDS-HXY#C18198389HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 14,860 | ₹8.31 · 14,860 in stock | View |
 | SI2333(XBLW)#C22451449XBLW · SOT-23-3L | XBLW | SOT-23-3L | 2,660 | ₹8.71 · 2,660 in stock | View |
 | IRLML6401TRPBF-JSM#C2874694JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 3,720 | ₹7.98 · 3,720 in stock | View |
