VISHAYDatasheet (PDF)

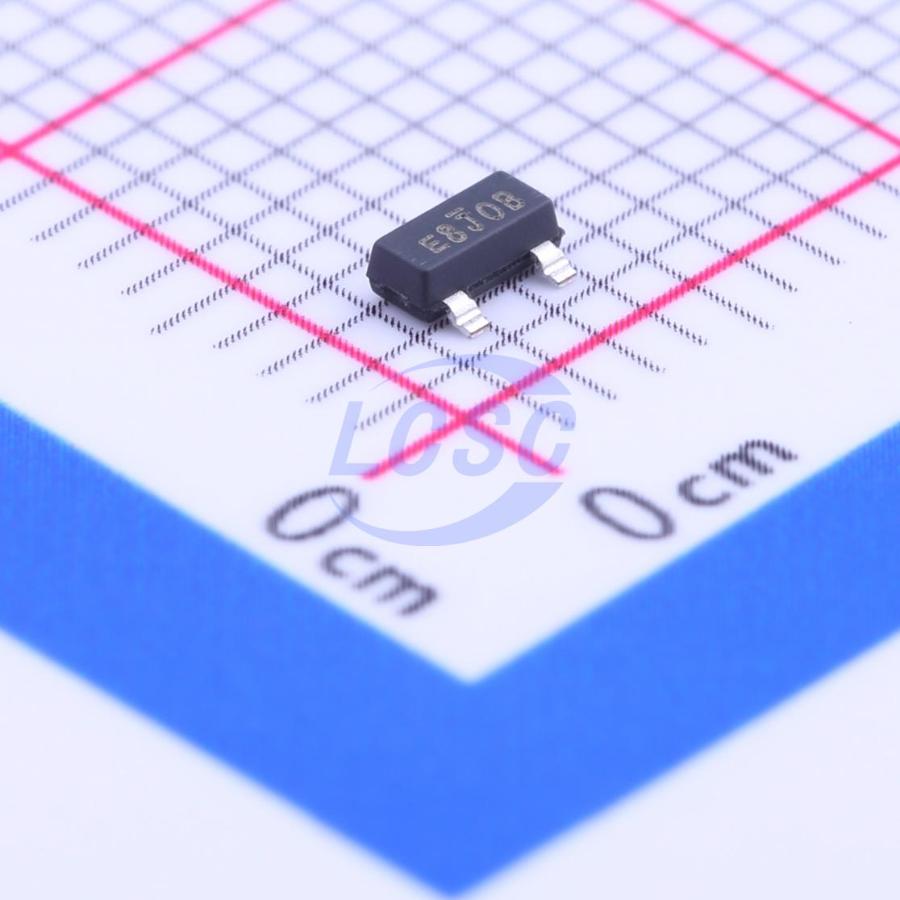

SI2338DS-T1-GE3
N-Channel 30V 6A 1.3W 2.5W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 30V 6A SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- SI2338DS-T1-GE3
- Store part #
- C82649
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,517 in stock
#C82649
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.10 | ₹64.10 |
| 10+ | ₹50.42 | ₹504.20 |
| 30+ | ₹44.55 | ₹1,336.50 |
| 100+ | ₹37.37 | ₹3,737.00 |
| 500+ | ₹34.12 | ₹17,060.00 |
| 1,000+ | ₹32.16 | ₹32,160.00 |
1 × ₹64.10
₹64.10
excl. GST
₹75.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2338DS-T1-GE3
₹64.10 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 100pF
- Ciss-Input Capacitance
- 424pF
- Pd - Power Dissipation
- 1.3W;2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 28mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
Applications
- DC/DC Converters
- High Speed Switching
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Power MOSFET
- Low On-Resistance
- 100 % Rg Tested
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2338DS-T1-BE3#C5917641VISHAY · SOT-23(TO-236) | VISHAY | SOT-23(TO-236) | 78 | ₹73.72 · 78 in stock | View |
| SP30N22T2#C41354915Siliup · SOT-23 | Siliup | SOT-23 | 2,400 | ₹2.67 · 2,400 in stock | View | |
 | HSS3008#C51025825HUASHUO · SOT-23L | HUASHUO | SOT-23L | On request | ₹6.23 · 0 in stock | View |
 | HSS3404A#C518794HUASHUO · SOT-23 | HUASHUO | SOT-23 | 2,960 | ₹5.33 · 2,960 in stock | View |
 | AO3404A#C7603369TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,270 | ₹6.42 · 6,270 in stock | View |
