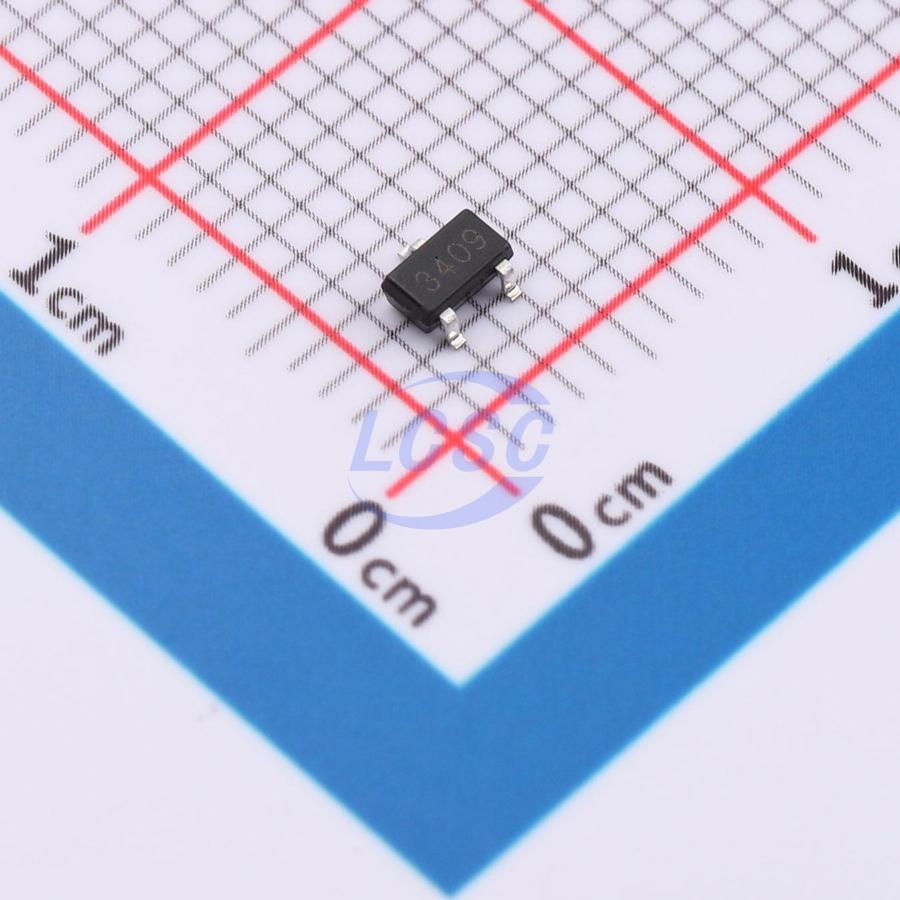

SI2343CDS-TP
P-Channel 30V 5.6A 2.5W Surface Mount SOT-23-3L
SOT-23-3LRoHSActive
MOSFET P-CH 30V 5.6A SOT-23-3L
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SI2343CDS-TP
- Store part #
- C41348107
- Package / case
- SOT-23-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C41348107
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.69 | ₹66.90 |
| 100+ | ₹5.33 | ₹533.00 |
| 300+ | ₹4.66 | ₹1,398.00 |
| 3,000+ | ₹4.15 | ₹12,450.00 |
| 6,000+ | ₹3.74 | ₹22,440.00 |
| 9,000+ | ₹3.55 | ₹31,950.00 |
10 × ₹6.69
₹66.90
excl. GST
₹78.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2343CDS-TP
₹66.90 for 10 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 150pF
- Current - Continuous Drain(Id)
- 5.6A
- Ciss-Input Capacitance
- 1.295nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 160pF
- RDS(on)
- 56mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11.4nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Applications
- Interfacing Switching
- Portable equipment and battery Load Switch
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2347DS-TP#C41408034TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 970 | ₹13.07 · 970 in stock | View |
 | SI2369DS#C41348108TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 1,530 | ₹12.73 · 1,530 in stock | View |
 | SI2393DS#C41348109TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 4,345 | ₹10.19 · 4,345 in stock | View |
 | TPM30V9PS3L#C41348292TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 2,795 | ₹15.10 · 2,795 in stock | View |
