VBsemi ElecDatasheet (PDF)

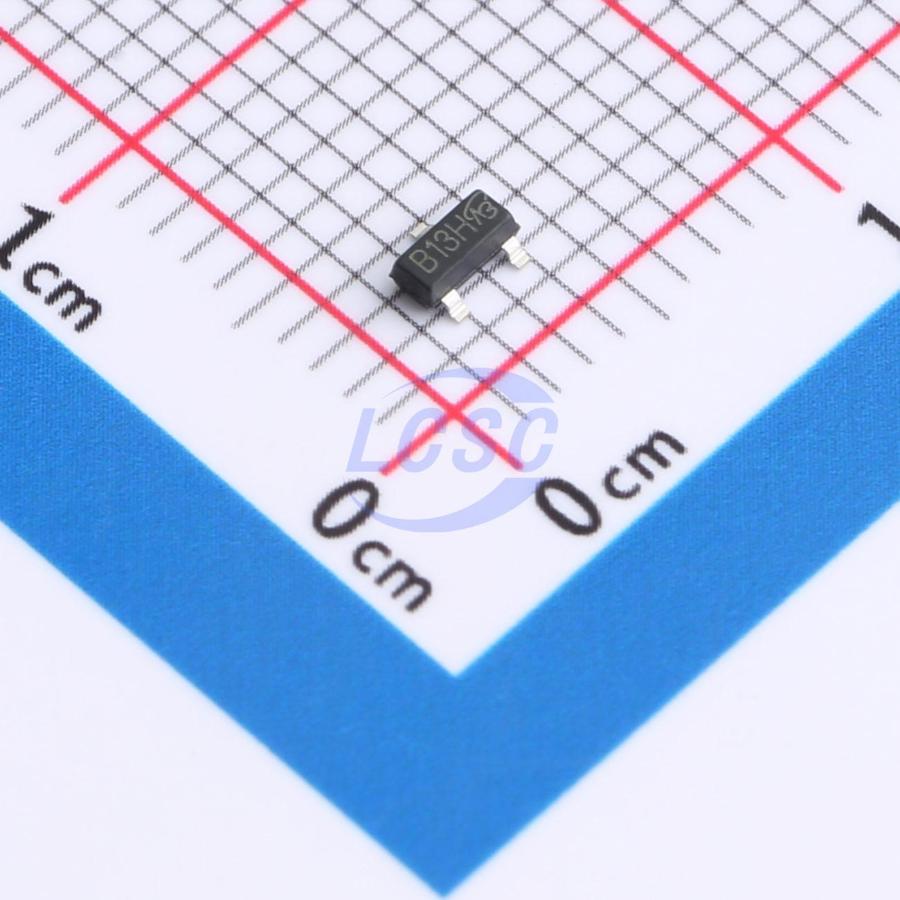

Si2372DS-T1-GE3-VB
N-Channel 30V 6.5A 1.7W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 30V 6.5A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- Si2372DS-T1-GE3-VB
- Store part #
- C41370405
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C41370405
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.16 | ₹85.80 |
| 50+ | ₹14.38 | ₹719.00 |
| 150+ | ₹13.01 | ₹1,951.50 |
| 500+ | ₹11.96 | ₹5,980.00 |
| 3,000+ | ₹7.63 | ₹22,890.00 |
| 6,000+ | ₹7.22 | ₹43,320.00 |
5 × ₹17.16
₹85.80
excl. GST
₹101.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Si2372DS-T1-GE3-VB
₹85.80 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 45pF
- Current - Continuous Drain(Id)
- 6.5A
- Ciss-Input Capacitance
- 335pF
- Pd - Power Dissipation
- 1.7W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
Applications
- Notebook computers
- Load switch
- P-channel MOSFET
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AM2340N-T1-PF-VB#C19626795VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹12.77 · 50 in stock | View |
 | FDN359BN-NL-VB#C20626339VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹13.24 · 100 in stock | View |
 | CES2320-VB#C20755488VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹13.24 · 50 in stock | View |
 | AO3408-VB#C22389395VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 115 | ₹16.51 · 115 in stock | View |
 | AP2318GEN-VB#C22389556VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 15 | ₹12.77 · 15 in stock | View |
