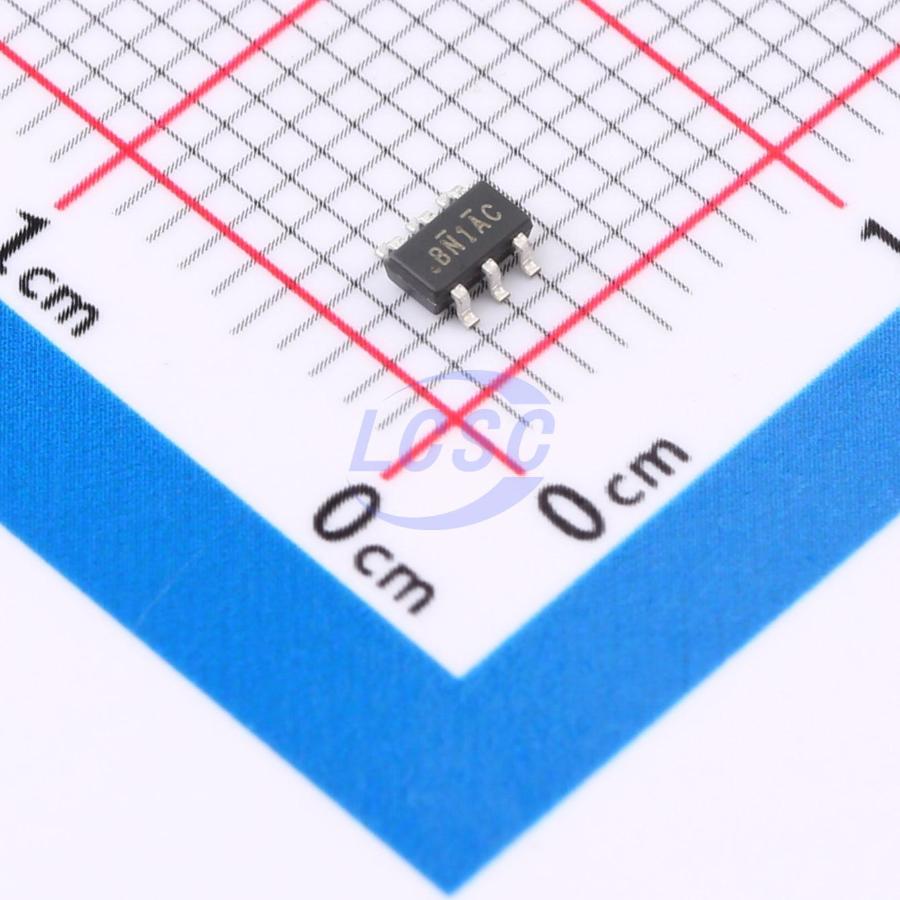

SI3443DDV-T1-GE3
P-Channel 20V 4A 2.7W Surface Mount TSOP-6
TSOP-6ROHS3 CompliantActive
MOSFET P-CH 20V 4A TSOP-6
- Manufacturer
- VISHAY
- Manufacturer part #
- SI3443DDV-T1-GE3
- Store part #
- C727279
- Package / case
- TSOP-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C727279
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.89 | ₹119.45 |
| 50+ | ₹18.83 | ₹941.50 |
| 150+ | ₹16.67 | ₹2,500.50 |
| 500+ | ₹13.35 | ₹6,675.00 |
| 3,000+ | ₹12.15 | ₹36,450.00 |
| 6,000+ | ₹11.43 | ₹68,580.00 |
5 × ₹23.89
₹119.45
excl. GST
₹140.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI3443DDV-T1-GE3
₹119.45 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 125pF
- Ciss-Input Capacitance
- 970pF
- Pd - Power Dissipation
- 2.7W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 111pF
- RDS(on)
- 39mΩ@4.5V;57mΩ@2.7V;64mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 20nC@8V;9nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
Applications
- Hard disk drives
- DC/DC converter
- Load switch
- Portable devices
Key features
- TrenchFET power MOSFET
- PWM optimized
- 100 % Rg tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI3433CDV#C5197378TECH PUBLIC · SOT-163 | TECH PUBLIC | SOT-163 | 1,195 | ₹23.38 · 1,195 in stock | View |
 | DMP2040UVT-7#C461056DIODES · TSOT-26 | DIODES | TSOT-26 | 5 | ₹29.23 · 5 in stock | View |
 | DMP2040UVT-13#C3276274DIODES · TSOT-26 | DIODES | TSOT-26 | 10 | ₹17.60 · 10 in stock | View |
 | SI3443CDV-T1-GE3#C145343VISHAY · TSOP-6 | VISHAY | TSOP-6 | 12,985 | ₹27.97 · 12,985 in stock | View |
 | SI3443CDV-T1-E3#C727385VISHAY · TSOP-6 | VISHAY | TSOP-6 | 512 | ₹92.73 · 512 in stock | View |
