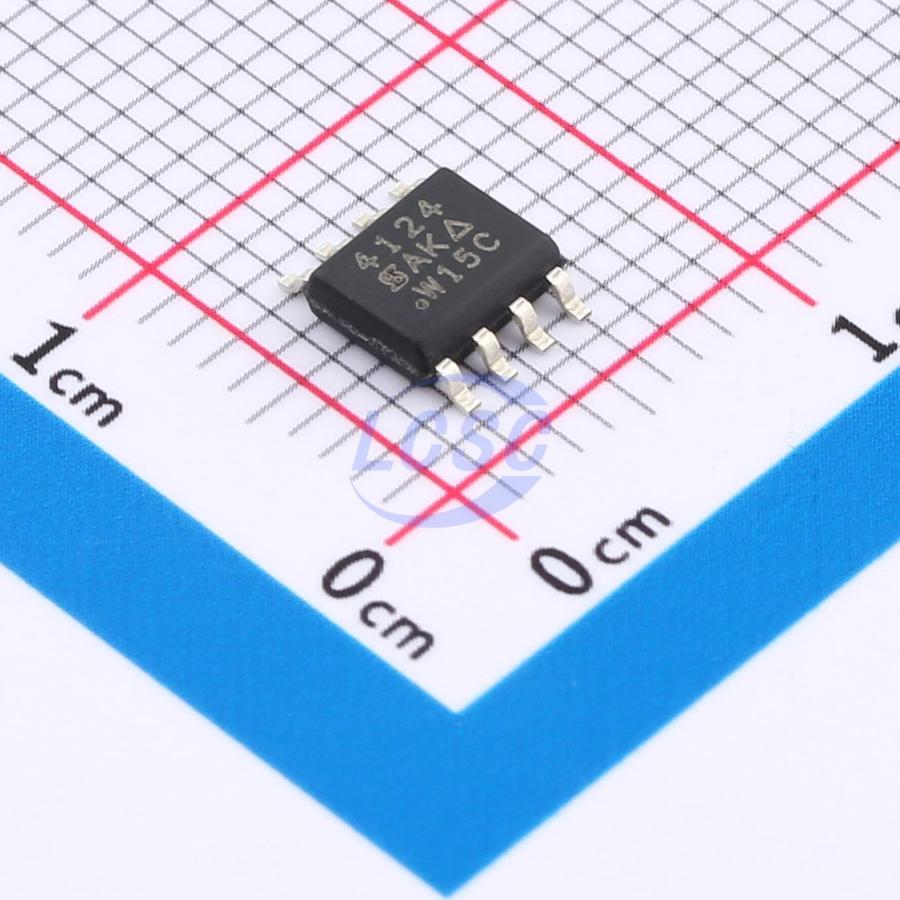

SI4124DY-T1-GE3
N-Channel 40V 20.5A 2.5W 5.7W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 40V 20.5A SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI4124DY-T1-GE3
- Store part #
- C6816059
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C6816059
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.86 | ₹152.86 |
| 10+ | ₹137.25 | ₹1,372.50 |
| 30+ | ₹128.58 | ₹3,857.40 |
| 100+ | ₹118.82 | ₹11,882.00 |
| 500+ | ₹114.48 | ₹57,240.00 |
| 1,000+ | ₹112.53 | ₹1,12,530.00 |
1 × ₹152.86
₹152.86
excl. GST
₹180.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SI4124DY-T1-GE3
₹152.86 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 20.5A
- Ciss-Input Capacitance
- 3.54nF
- Pd - Power Dissipation
- 2.5W;5.7W
- Reverse Transfer Capacitance (Crss)
- 142pF
- RDS(on)
- 7.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 77nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.255 g
Overview
This power MOSFET is manufactured using advanced trench technology. This advanced technology is specially designed to minimize conduction losses, deliver superior switching performance, and withstand high-energy pulses in avalanche and commutation modes.
Applications
- Synchronous rectification
- DC/DC
Key features
- TrenchFET power MOSFET
- 100 % Rg tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM4015NS8#C41348293TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 100 | ₹38.12 · 100 in stock | View |
 | HSM4006#C700991HUASHUO · SOP-8 | HUASHUO | SOP-8 | 1,125 | ₹27.04 · 1,125 in stock | View |
 | SP40N03P8#C42372345Siliup · SOP-8L | Siliup | SOP-8L | 1,825 | ₹19.73 · 1,825 in stock | View |
| BUK7J2R4-80MX#C41839675Nexperia · SO-8 | Nexperia | SO-8 | On request | ₹448.58 · 0 in stock | View | |
 | XPHR7904PS,L1XHQ#C41488267TOSHIBA · SOPAdvance(WF)-8 | TOSHIBA | SOPAdvance(WF)-8 | 280 | ₹212.26 · 280 in stock | View |
