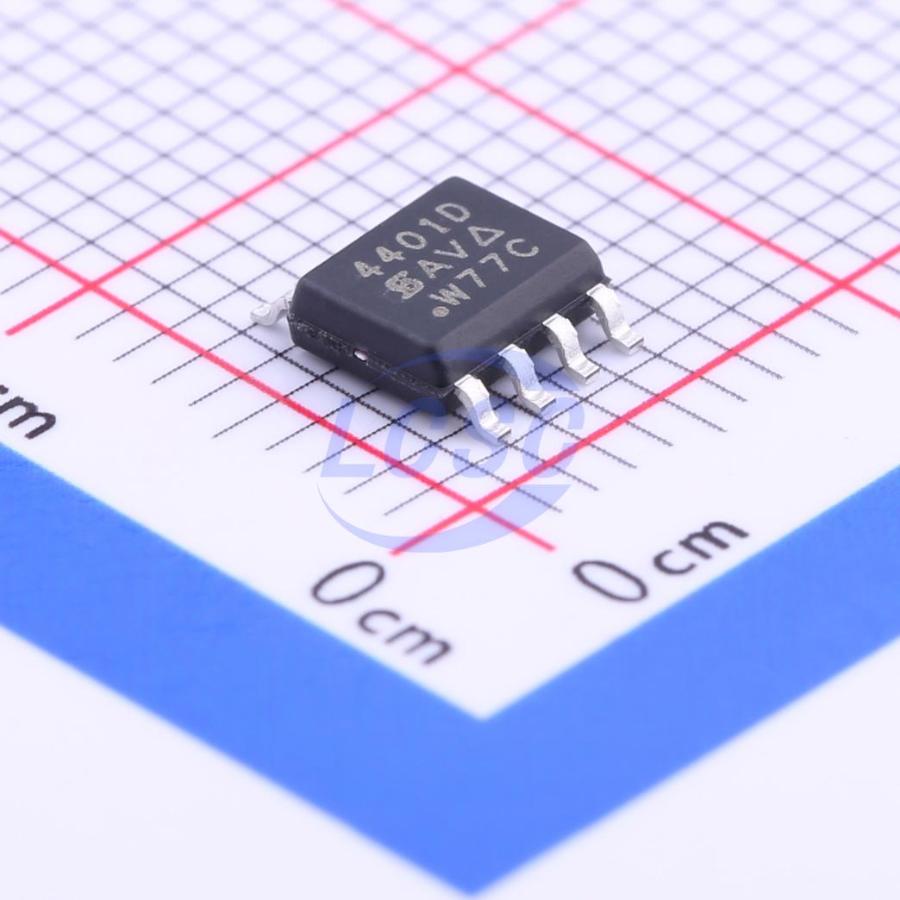

SI4401DDY-T1-GE3
P-Channel 40V 10.2A 4W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 40V 10.2A SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI4401DDY-T1-GE3
- Store part #
- C72317
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,378 in stock
#C72317
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.81 | ₹75.81 |
| 10+ | ₹61.69 | ₹616.90 |
| 30+ | ₹54.52 | ₹1,635.60 |
| 100+ | ₹47.58 | ₹4,758.00 |
| 500+ | ₹43.45 | ₹21,725.00 |
| 1,000+ | ₹41.28 | ₹41,280.00 |
1 × ₹75.81
₹75.81
excl. GST
₹89.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SI4401DDY-T1-GE3
₹75.81 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 335pF
- Ciss-Input Capacitance
- 3.007nF
- Pd - Power Dissipation
- 4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 10.2A
- Reverse Transfer Capacitance (Crss)
- 291pF
- RDS(on)
- 15mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 33nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.258 g
Overview
Applications
- Load Switch
- POL
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Power MOSFET 100 % Rg Tested
- 100 % UIS Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPC8134-VB#C4355130VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 4 | ₹77.94 · 4 in stock | View |
 | FDS4141-NL-VB#C5137404VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 49 | ₹81.27 · 49 in stock | View |
 | SI4401DDY-T1-GE3-VB#C558264VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 18 | ₹75.38 · 18 in stock | View |
 | STS10P4LLF6-VB#C710098VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 16 | ₹77.73 · 16 in stock | View |
 | IRF7241TR-VB#C693307VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 661 | ₹56.29 · 661 in stock | View |
