HXY MOSFETDatasheet (PDF)

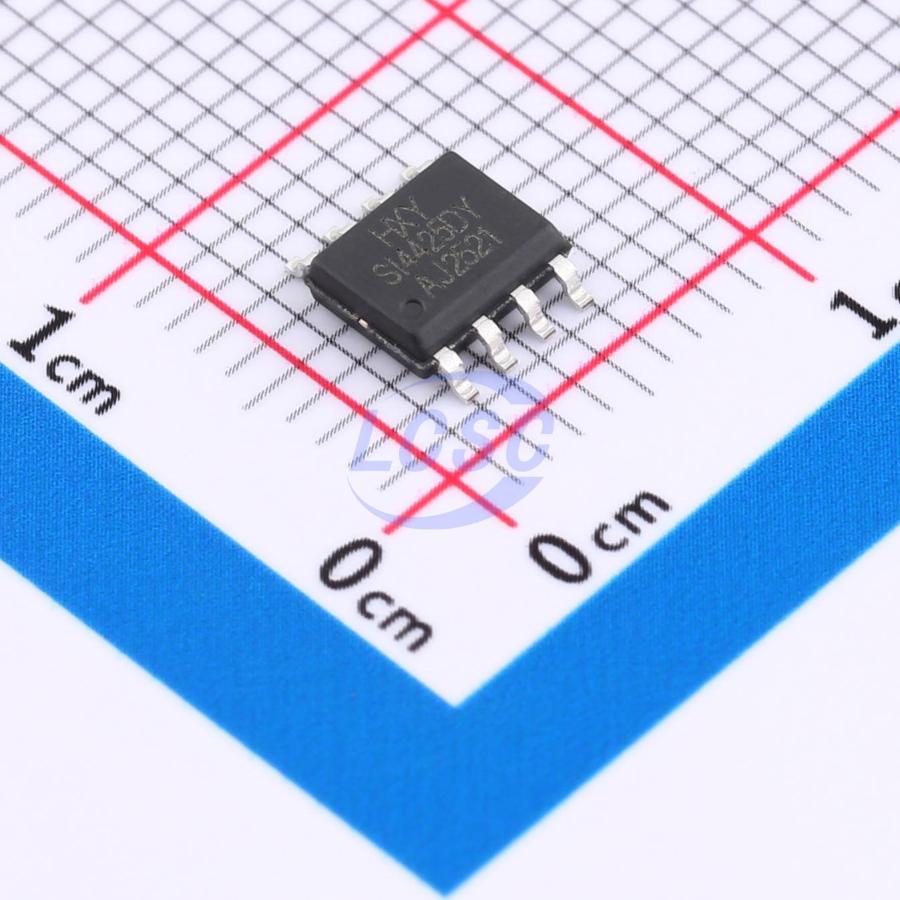

SI4425DY-HXY
30V 12A 2.5W 10mΩ@10V 1 P-Channel P-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
MOSFET P-CH 30V 12A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SI4425DY-HXY
- Store part #
- C49256915
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C49256915
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.94 | ₹244.70 |
| 50+ | ₹39.20 | ₹1,960.00 |
| 150+ | ₹35.02 | ₹5,253.00 |
| 500+ | ₹29.82 | ₹14,910.00 |
| 3,000+ | ₹27.49 | ₹82,470.00 |
| 6,000+ | ₹26.10 | ₹1,56,600.00 |
5 × ₹48.94
₹244.70
excl. GST
₹288.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI4425DY-HXY
₹244.70 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 12A
- Output Capacitance(Coss)
- 233pF
- Ciss-Input Capacitance
- 1.77nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 206pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.115 g
Overview
The SI4425DY employs advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation down to 4.5V gate voltage. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = -30V, ID = -12A
- RDS(ON) < 15mΩ at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF9328PBF-HXY#C22366553HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 15 | ₹26.01 · 15 in stock | View |
 | FDS6675-HXY#C22366555HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 45 | ₹32.61 · 45 in stock | View |
| FDS6675BZ-HXY#C22366556HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 25 | ₹31.82 · 25 in stock | View | |
 | HXY4407S#C3033408HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 210 | ₹18.95 · 210 in stock | View |
 | AO4407-HXY#C4748733HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 2,790 | ₹16.01 · 2,790 in stock | View |
