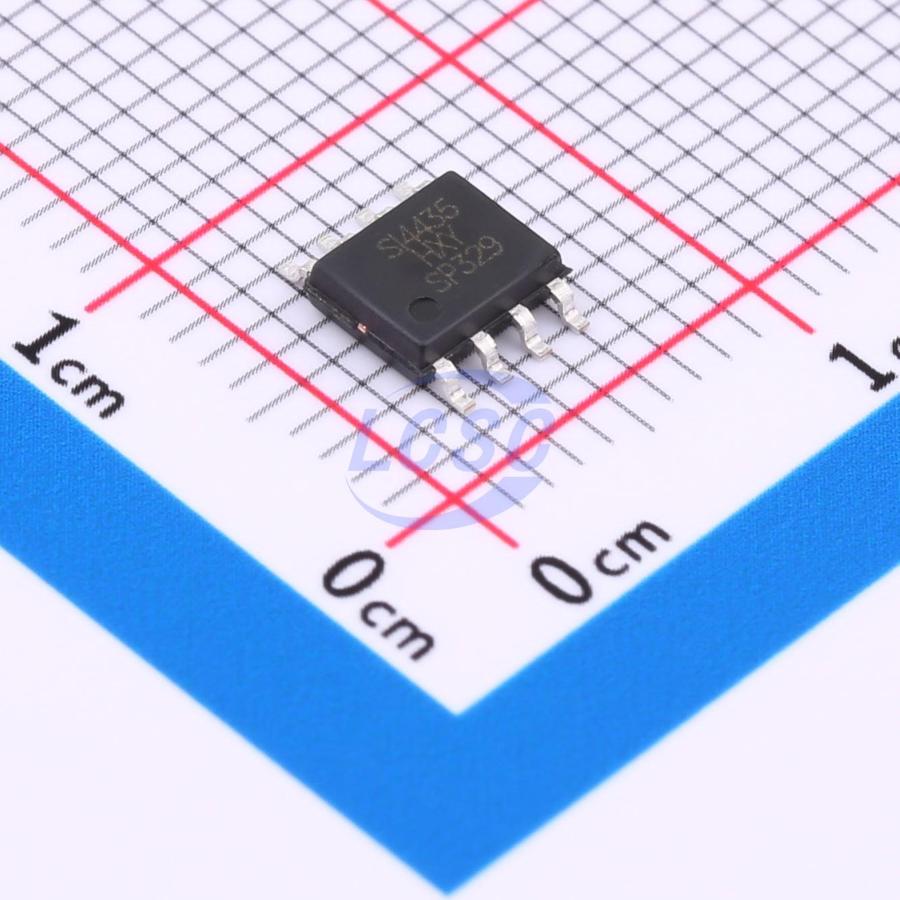

SI4435DYTRPBF-HXY
P-Channel 30V 11A Surface Mount SOP-8
SOP-8ROHS CompliantActive
MOSFET P-CH 30V 11A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SI4435DYTRPBF-HXY
- Store part #
- C7543021
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
258 in stock
#C7543021
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹20.88 | ₹20.88 |
| 10+ | ₹17.08 | ₹170.80 |
| 30+ | ₹15.19 | ₹455.70 |
| 100+ | ₹13.76 | ₹1,376.00 |
| 500+ | ₹12.62 | ₹6,310.00 |
| 1,000+ | ₹10.13 | ₹10,130.00 |
1 × ₹20.88
₹20.88
excl. GST
₹24.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI4435DYTRPBF-HXY
₹20.88 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 183pF
- Current - Continuous Drain(Id)
- 11A
- Ciss-Input Capacitance
- 1.33nF
- Pd - Power Dissipation
- 3.7W
- Reverse Transfer Capacitance (Crss)
- 156pF
- RDS(on)
- 13mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.364 g
