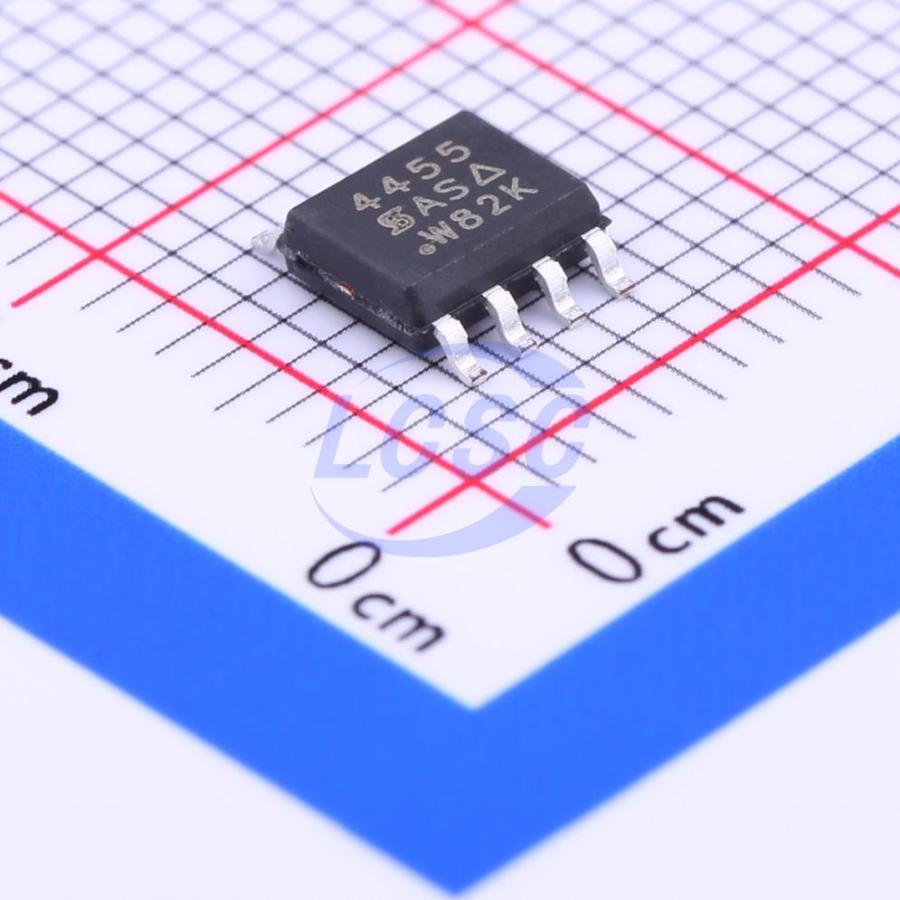

SI4455DY-T1-GE3
P-Channel 150V 2.8A 3.8W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 150V 2.8A SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI4455DY-T1-GE3
- Store part #
- C241861
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
466 in stock
#C241861
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.12 | ₹138.12 |
| 10+ | ₹116.87 | ₹1,168.70 |
| 30+ | ₹106.03 | ₹3,180.90 |
| 100+ | ₹95.40 | ₹9,540.00 |
| 500+ | ₹89.12 | ₹44,560.00 |
| 1,000+ | ₹85.86 | ₹85,860.00 |
1 × ₹138.12
₹138.12
excl. GST
₹162.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SI4455DY-T1-GE3
₹138.12 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 61pF
- Ciss-Input Capacitance
- 1.19nF
- Pd - Power Dissipation
- 3.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 2.8A
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 315mΩ@6V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.252 g
Overview
Applications
- Active Clamp in Intermediate DC/DC Power Supplies
- H-Bridge High Side Switch for Lighting Application
Key features
- TrenchFET Power MOSFET 100% Rg and UIS Tested
- RoHS COMPLIANT
- HALOGEN FREE Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI4455DY#C22358682TECH PUBLIC · SOIC-8 | TECH PUBLIC | SOIC-8 | 2,035 | ₹58.75 · 2,035 in stock | View |
 | HSM01P15#C2903557HUASHUO · SOP-8 | HUASHUO | SOP-8 | 600 | ₹37.49 · 600 in stock | View |
 | TPM1504PHS8#C22358670TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 441 | ₹86.30 · 441 in stock | View |
 | FDS86267P-TP#C22358681TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 465 | ₹88.87 · 465 in stock | View |
 | IRF6216TRPBF-TP#C22358705TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 1,388 | ₹82.00 · 1,388 in stock | View |
