VBsemi ElecDatasheet (PDF)

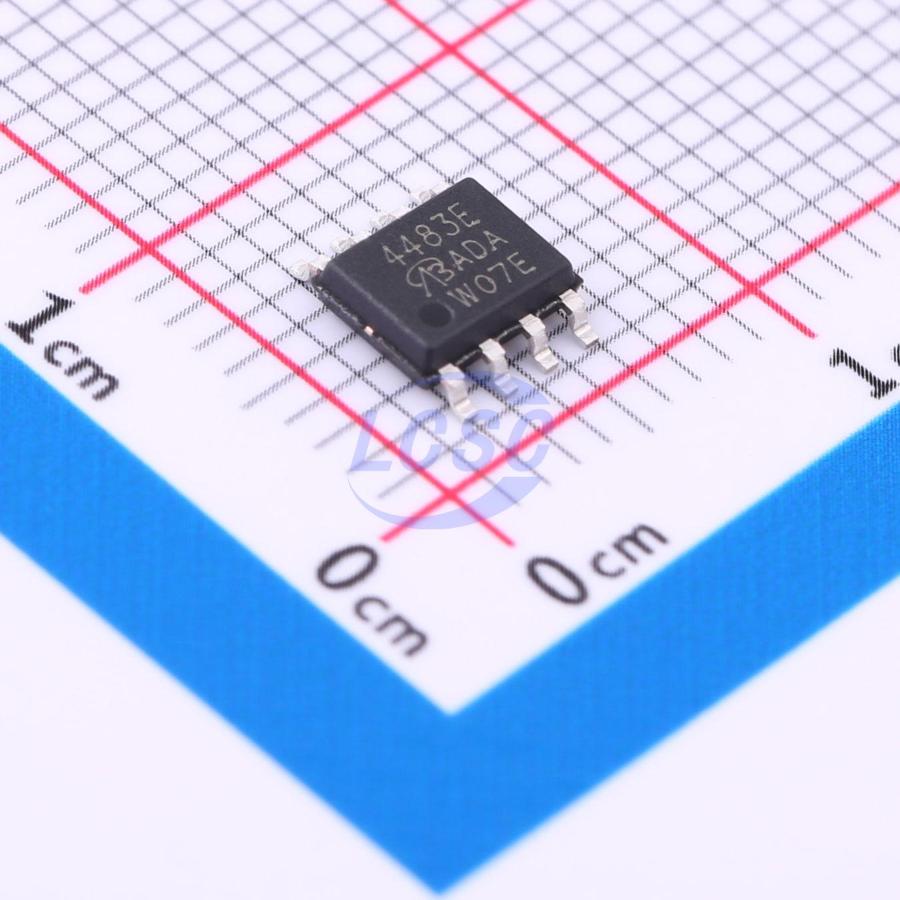

SI4483EDY-T1-E3-VB
P-Channel 30V 10.9A 2.7W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 10.9A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI4483EDY-T1-E3-VB
- Store part #
- C5441245
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5441245
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.94 | ₹77.94 |
| 10+ | ₹61.84 | ₹618.40 |
| 30+ | ₹54.86 | ₹1,645.80 |
| 100+ | ₹46.16 | ₹4,616.00 |
| 500+ | ₹42.46 | ₹21,230.00 |
| 1,000+ | ₹40.06 | ₹40,060.00 |
1 × ₹77.94
₹77.94
excl. GST
₹91.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SI4483EDY-T1-E3-VB
₹77.94 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 455pF
- Current - Continuous Drain(Id)
- 10.9A
- Ciss-Input Capacitance
- 2.55nF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 390pF
- RDS(on)
- 11mΩ@10V;15mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 29.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.37 g
Overview
Applications
- Load Switch
- Laptop Adapter Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPC8107&9-VB#C6705332VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 2,572 | ₹52.97 · 2,572 in stock | View |
 | FDS4465-NL&-9-VB#C693284VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹76.75 · 40 in stock | View |
 | AO4447A-VB#C724961VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 1,490 | ₹54.04 · 1,490 in stock | View |
 | AO4413-VB#C4355070VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 287 | ₹72.47 · 287 in stock | View |
 | IRF9321TRPBF-VB#C5137385VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 19 | ₹71.47 · 19 in stock | View |
Same category
