HXY MOSFETDatasheet (PDF)

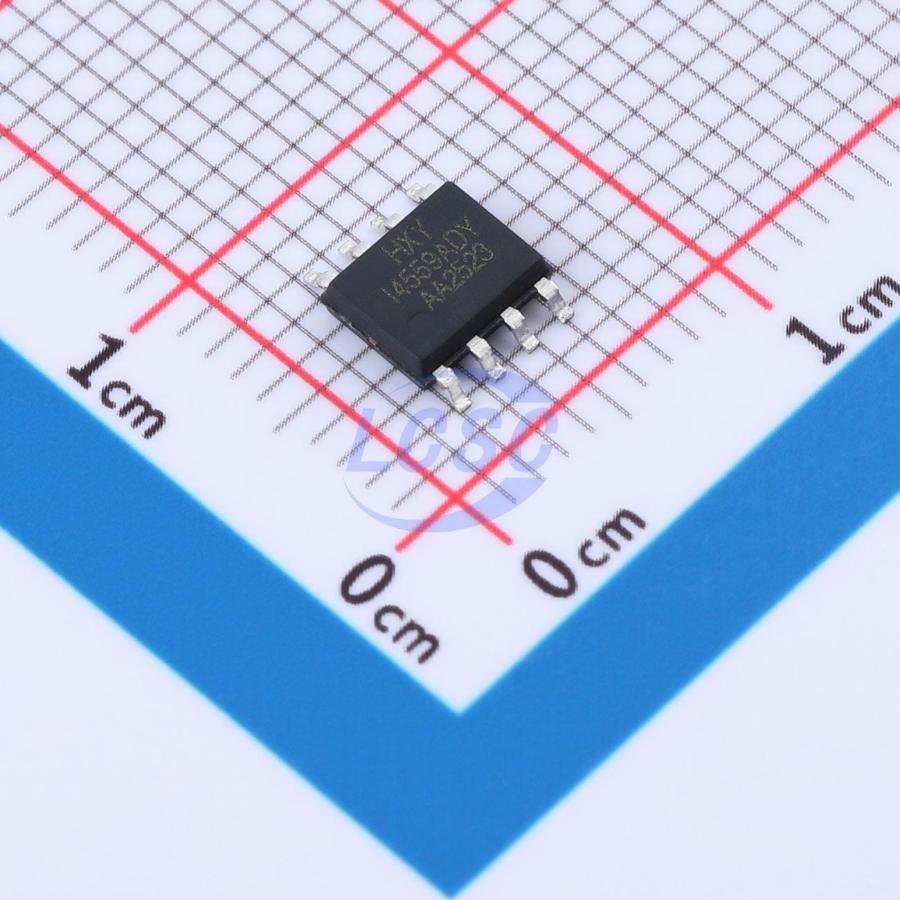

SI4559ADY-HXY
N-Channel+P-Channel Array 60V 6A 2.5W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET N-CH+P-CH ARR 60V 6A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SI4559ADY-HXY
- Store part #
- C18198387
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C18198387
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.67 | ₹188.35 |
| 50+ | ₹30.92 | ₹1,546.00 |
| 150+ | ₹28.02 | ₹4,203.00 |
| 500+ | ₹24.41 | ₹12,205.00 |
| 3,000+ | ₹17.71 | ₹53,130.00 |
| 6,000+ | ₹16.75 | ₹1,00,500.00 |
5 × ₹37.67
₹188.35
excl. GST
₹222.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI4559ADY-HXY
₹188.35 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 58.5pF
- Ciss-Input Capacitance
- 1.148nF
- Pd - Power Dissipation
- 2.5W
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 49.4pF
- RDS(on)
- 40mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 20.3nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.216 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS4559-HXY#C4748740HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 3,705 | ₹35.63 · 3,705 in stock | View |
 | AUIRF7343QTR-HXY#C49420462HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 175 | ₹239.48 · 175 in stock | View |
 | IRF7389TRPBF-HXY#C48972101HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 195 | ₹100.83 · 195 in stock | View |
 | SH8MA3TB1-HXY#C48972102HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 175 | ₹48.94 · 175 in stock | View |
 | IRF7343TRPBF-HXY#C20606238HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | On request | ₹29.66 · 0 in stock | View |
