VBsemi ElecDatasheet (PDF)

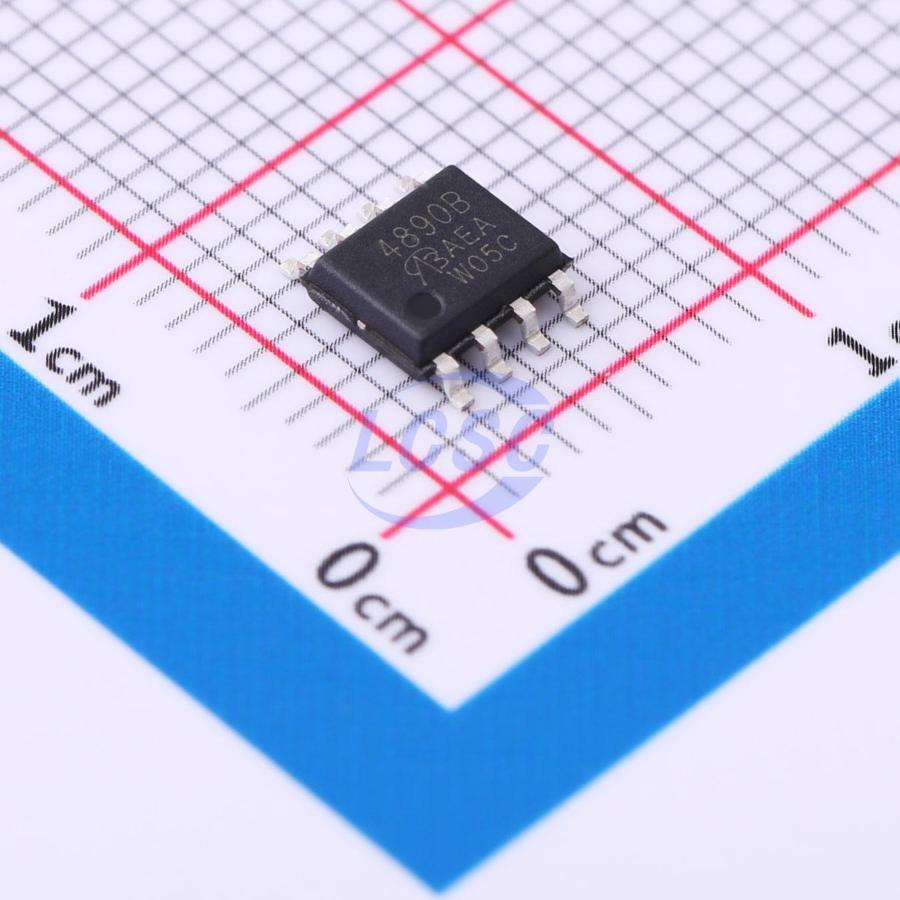

SI4890BDY-T1-E3-VB
N-Channel 30V 13A 4.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 13A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI4890BDY-T1-E3-VB
- Store part #
- C5441248
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5441248
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.98 | ₹224.90 |
| 50+ | ₹35.56 | ₹1,778.00 |
| 150+ | ₹31.51 | ₹4,726.50 |
| 500+ | ₹26.47 | ₹13,235.00 |
| 2,500+ | ₹24.24 | ₹60,600.00 |
| 4,000+ | ₹22.89 | ₹91,560.00 |
5 × ₹44.98
₹224.90
excl. GST
₹265.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SI4890BDY-T1-E3-VB
₹224.90 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 165pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 4.1W
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 8mΩ@10V;11mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.265 g
Overview
Applications
- Notebook CPU core
- High-end switching
- N-channel MOSFET
Key features
- Halogen-free
- Trench power MOSFET
- Optimized for high-side synchronous rectifier operation
- 100% Rg tested
- 100% UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RSS125N03TB-VB#C18794975VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹46.21 · 50 in stock | View |
 | AO4422A-VB#C19632265VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹46.21 · 20 in stock | View |
 | IRF7413ZTRPBF-VB#C20626371VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹45.67 · 50 in stock | View |
 | FDS6298-NL-VB#C20755093VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹45.67 · 45 in stock | View |
 | UPA1701AG-VB#C20755311VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹45.67 · 40 in stock | View |
