VBsemi ElecDatasheet (PDF)

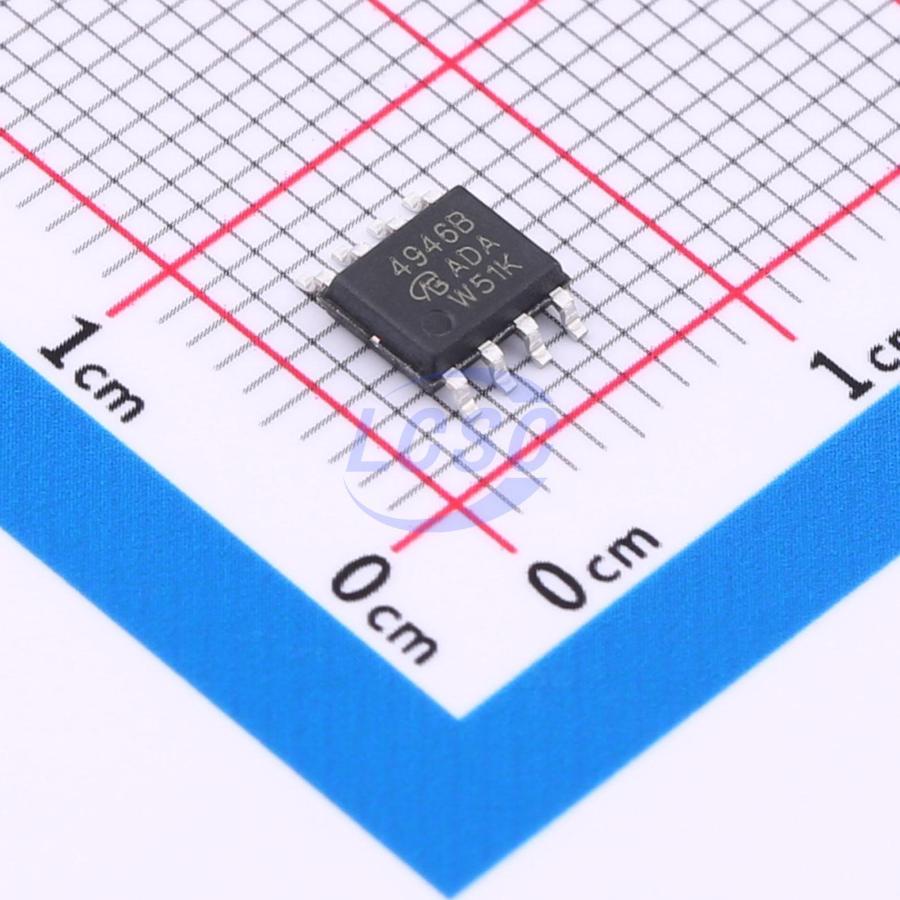

SI4946BEY-T1-GE3-VB
N-Channel 60V 7A 1.3W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 60V 7A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI4946BEY-T1-GE3-VB
- Store part #
- C45662573
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C45662573
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.42 | ₹81.42 |
| 10+ | ₹66.19 | ₹661.90 |
| 30+ | ₹58.57 | ₹1,757.10 |
| 100+ | ₹50.95 | ₹5,095.00 |
| 500+ | ₹46.60 | ₹23,300.00 |
| 1,000+ | ₹44.20 | ₹44,200.00 |
1 × ₹81.42
₹81.42
excl. GST
₹96.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SI4946BEY-T1-GE3-VB
₹81.42 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 110pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 600pF
- Pd - Power Dissipation
- 1.3W
- Reverse Transfer Capacitance (Crss)
- 62pF
- RDS(on)
- 30mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 50nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
Applications
- DC-DC Converter - N-Channel MOSFET
Key features
- TrenchFET Power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOSD62666E-VB#C45662500VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹106.03 · 10 in stock | View |
 | VBZA9945#C700609VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 1,147 | ₹57.39 · 1,147 in stock | View |
 | SQ4940EY-T1-GE3-VB#C19632162VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹78.56 · 20 in stock | View |
| DMN6066SSD-VB#C52989186VBsemi Elec · SOP-8 | VBsemi Elec | SOP-8 | 5 | ₹86.87 · 5 in stock | View | |
 | FDSS2407-NL-VB#C52989189VBsemi Elec · SOP-8 | VBsemi Elec | SOP-8 | 5 | ₹81.42 · 5 in stock | View |
