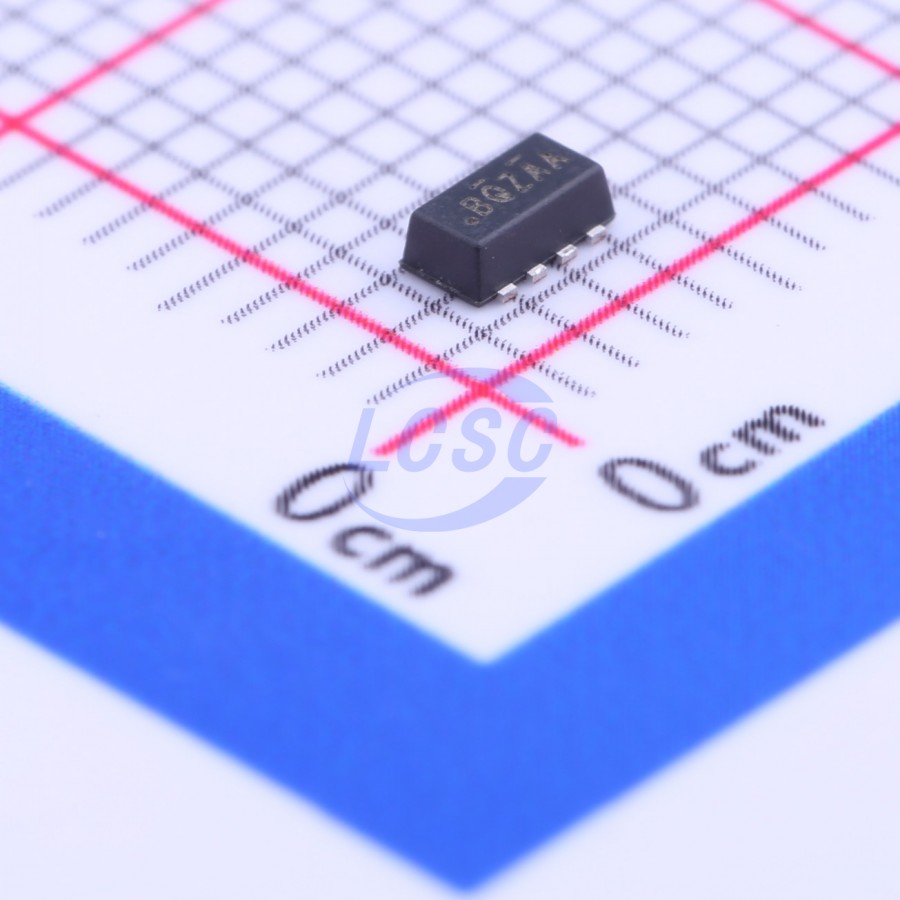

VISHAY

SI5403DC-T1-GE3

P-Channel 30V 6A 6.3W Surface Mount SMD-8P,3.2x1.6mm

SMD-8P,3.2x1.6mmROHS3 CompliantActive

MOSFET P-CH 30V 6A SMD-8P,3.2x1.6mm

Manufacturer: VISHAY
Manufacturer part #: SI5403DC-T1-GE3
Store part #: C143686
Package / case: SMD-8P,3.2x1.6mm
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,534 in stock

#C143686

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
1+	₹41.21	₹41.21
10+	₹35.63	₹356.30
30+	₹33.27	₹998.10
100+	₹30.27	₹3,027.00
500+	₹28.97	₹14,485.00
1,000+	₹28.11	₹28,110.00

Quantity (min 1)

1 × ₹41.21

₹41.21

excl. GST

₹48.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SI5403DC-T1-GE3

₹41.21 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 215pF
Ciss-Input Capacitance: 1.34nF
Pd - Power Dissipation: 6.3W
Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 30V
Current - Continuous Drain(Id): 6A
Reverse Transfer Capacitance (Crss): 185pF
RDS(on): 44mΩ@4.5V
Number: 1 P-Channel
Gate Charge(Qg): 28nC
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 3V
Type: P-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.075 g

Overview

New Vishay Siliconix ChipFETs in the leadless 1206-8 package feature the same outline as popular 1206-8 resistors and capacitors but provide all the performance of true power semiconductor devices. The 1206-8 ChipFET has the same footprint as the body of the LITTLE FOOT TSOP-6, and can be thought of as a leadless TSOP-6 for purposes of visualizing board area, but its thermal performance bears comparison with the much larger SO-8.
