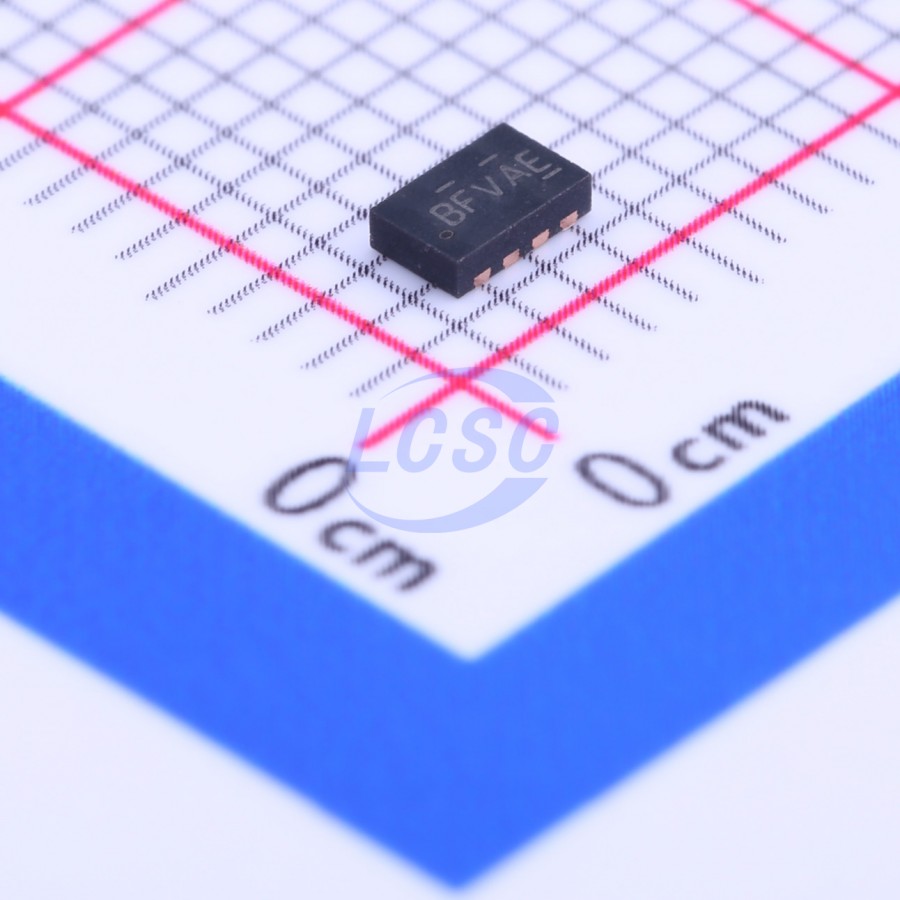

SI5419DU-T1-GE3
P-Channel 30V 12A 31W Surface Mount PowerPAK
PowerPAKROHS3 CompliantActive
MOSFET P-CH 30V 12A PowerPAK
- Manufacturer
- VISHAY
- Manufacturer part #
- SI5419DU-T1-GE3
- Store part #
- C144953
- Package / case
- PowerPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,919 in stock
#C144953
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.67 | ₹50.67 |
| 10+ | ₹44.66 | ₹446.60 |
| 30+ | ₹41.65 | ₹1,249.50 |
| 100+ | ₹38.64 | ₹3,864.00 |
| 500+ | ₹36.92 | ₹18,460.00 |
| 1,000+ | ₹36.08 | ₹36,080.00 |
1 × ₹50.67
₹50.67
excl. GST
₹59.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI5419DU-T1-GE3
₹50.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 240pF
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 31W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 12A
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 33mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 15.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- Load Switch
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Power MOSFET
- New Thermally Enhanced PowerPAK ChipFET Package
- Small Footprint Area
- Low On-Resistance
- Thin 0.8 mm profile
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQJQ141EL-T1_GE3#C5121455VISHAY · PowerPAK | VISHAY | PowerPAK | 903 | ₹511.49 · 903 in stock | View |
