VISHAYDatasheet (PDF)

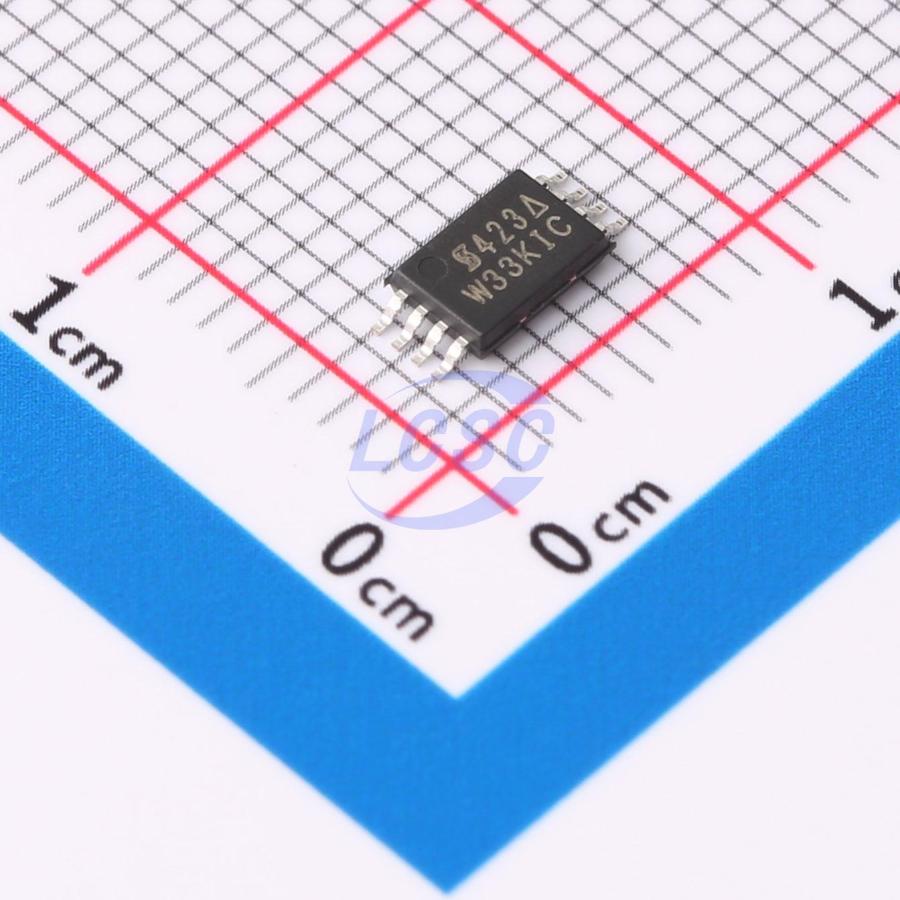

SI6423DQ-T1-GE3
P-Channel 12V 9.5A 1.5W Surface Mount TSSOP-8
TSSOP-8ROHS3 CompliantActive
MOSFET P-CH 12V 9.5A TSSOP-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI6423DQ-T1-GE3
- Store part #
- C2842885
- Package / case
- TSSOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,206 in stock
#C2842885
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹166.17 | ₹166.17 |
| 10+ | ₹151.14 | ₹1,511.40 |
| 30+ | ₹141.90 | ₹4,257.00 |
| 100+ | ₹132.25 | ₹13,225.00 |
| 500+ | ₹127.95 | ₹63,975.00 |
| 1,000+ | ₹126.02 | ₹1,26,020.00 |
1 × ₹166.17
₹166.17
excl. GST
₹196.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI6423DQ-T1-GE3
₹166.17 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 9.5A
- Pd - Power Dissipation
- 1.5W
- Reverse Transfer Capacitance (Crss)
- 19pF
- RDS(on)
- 14mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 110nC@5V
- Gate Threshold Voltage (Vgs(th))
- 800mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.192 g
Overview
Applications
- Load Switch
- Small form factor disk drives
- Computers
- Cellular phones
- PCMCIA cards
Key features
- Halogen-free TrenchFET Power MOSFET
- LITTLE FOOT TSSOP-8 MOSFETs have a smaller footprint and a lower profile than LITTLE FOOT SOICs, while maintaining low rDS(on) and high thermal performance
- LITTLE FOOT TSSOP-8 power MOSFETs require approximately half the PC board area of an equivalent LITTLE FOOT device
- The package height has been reduced to 1.1 mm
- The standard pinouts of the LITTLE FOOT TSSOP-8 packages have been changed from the standard established by LITTLE FOOT. This change minimizes the contribution of interconnection resistance to rDS(on) and maximizes the transfer of heat out of the package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI6423DQ-T1-E3#C467904VISHAY · TSSOP-8 | VISHAY | TSSOP-8 | On request | ₹258.36 · 0 in stock | View |
| SI6423ADQ-T1-GE3#C3281990VISHAY · TSSOP-8 | VISHAY | TSSOP-8 | On request | ₹65.53 · 0 in stock | View | |
